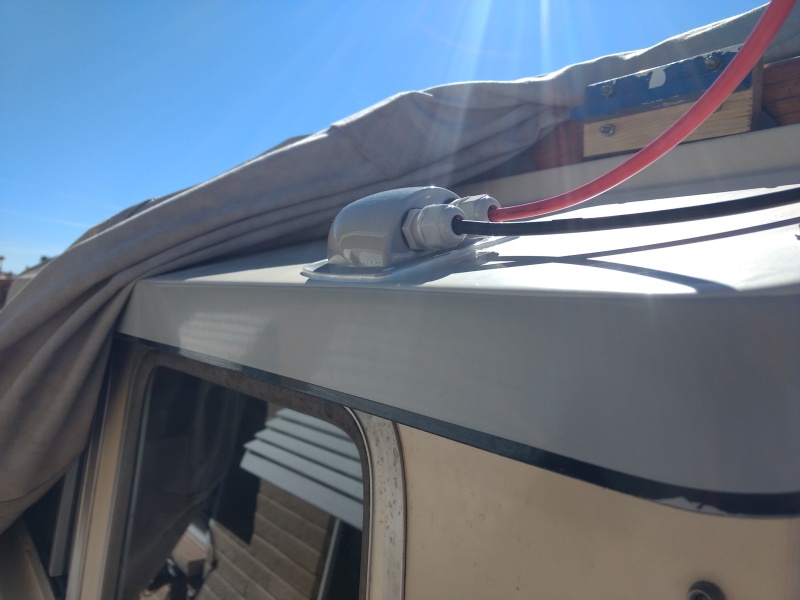

5200 all cured up and tape removed
Next
Prev

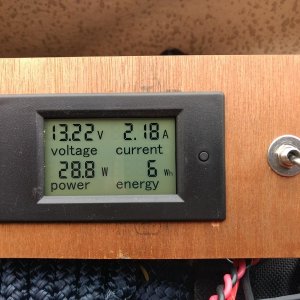

This shows AMPs being used (toggle switch in down position). It's currently showing amps drawn while the fridge was running. This will get mounted in the cabin somewhere, once I figure out where.

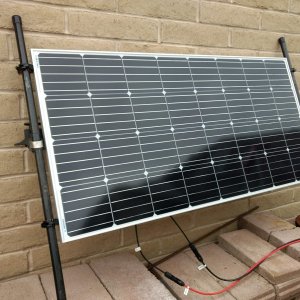

Here's the rack/solar-panel leaned up against the house.
Finished up the cabling/connectors where the panel will connect to the boat. The cables are extension cables going to the panel which is leaning up against the house. When the rack/solar-panel is mounted to the roof the cables directly from the panel will plug right in without the extensions. (I have to leave the rack off for my boat cover to fit). The velcro strain relief is screwed down under one of the bimini top snaps.
5200 all cured up and tape removed
5200 all cured up and tape removed
5200 all cured up and tape removed.
Here are the cables running up under the roof overhang.
Next
D

5200 all cured up and tape removed

5200 all cured up and tape removed
Click to expand...
There are no comments to display.

Media information

Category
Solar Install
Album
160 watt Renolgy solar panel mounted to the Desert Dory roof rack.
