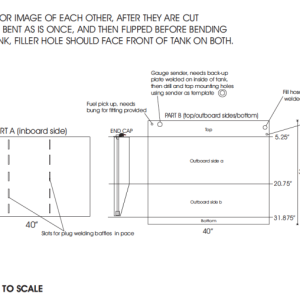

Diagram of saddle tank design. So far they have performed well.

Diagram of saddle tank design. So far they have performed well.

  • Media owner Catch 22
  • Date added Mar 15, 2011
  • Reaction score 0
  • Comments 0
view of the back deck, the powder coated white tanks make me really want to paint the rest of the deck, but that will be this winter, it will look pretty nice when its done

view of the back deck, the powder coated white tanks make me really want to paint the rest of the deck, but that will be this winter, it will look pretty nice when its done

  • Media owner Catch 22
  • Date added Jun 20, 2009
  • Reaction score 0
  • Comments 0
room enough for 4 lawn chairs easily

room enough for 4 lawn chairs easily

  • Media owner Catch 22
  • Date added Jun 20, 2009
  • Reaction score 0
  • Comments 0

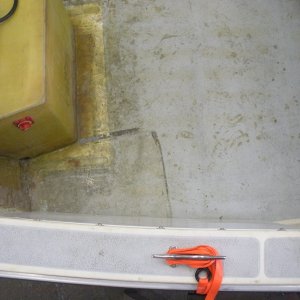

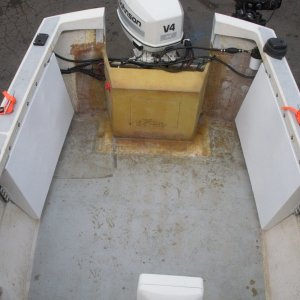

this view shows how the tanks hide up under the side, maximizing deck space, this with the smaller transom box makes for a really big back deck

this view shows how the tanks hide up under the side, maximizing deck space, this with the smaller transom box makes for a really big back deck

  • Media owner Catch 22
  • Date added Jun 20, 2009
  • Reaction score 0
  • Comments 0

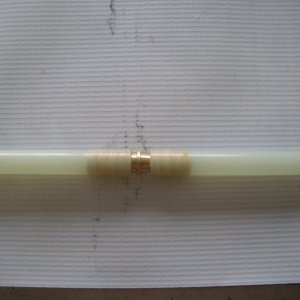

the fuel pick ups were not available deep enough for the new tanks, so i had to add some length, just a double ended barb and some boiling water to shrink on the extension, now i can get all the gas out of the tanks

the fuel pick ups were not available deep enough for the new tanks, so i had to add some length, just a double ended barb and some boiling water to shrink on the extension, now i can get all the gas out of the tanks

  • Media owner Catch 22
  • Date added Jun 14, 2009
  • Reaction score 0
  • Comments 0

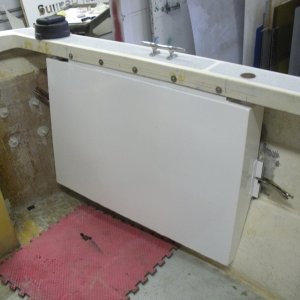

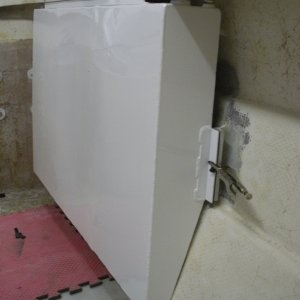

port tank mocked up

port tank mocked up

  • Media owner Catch 22
  • Date added Jun 14, 2009
  • Reaction score 0
  • Comments 0
port tank mocked up so i can cut all the lines to length and start mounting all the components

port tank mocked up so i can cut all the lines to length and start mounting all the components

  • Media owner Catch 22
  • Date added Jun 14, 2009
  • Reaction score 0
  • Comments 0

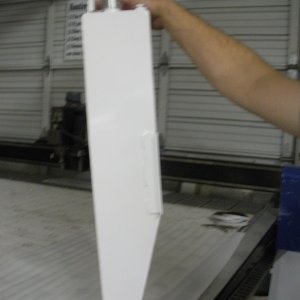

profile view of the tank

profile view of the tank

  • Media owner Catch 22
  • Date added Jun 13, 2009
  • Reaction score 0
  • Comments 0

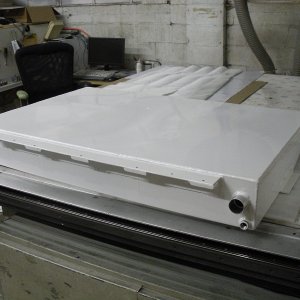

One of the two new fuel tanks, 1/8" aluminum powder coated white, 22 gallons, to be mounted one on each side of the boat

One of the two new fuel tanks, 1/8" aluminum powder coated white, 22 gallons, to be mounted one on each side of the boat

  • Media owner Catch 22
  • Date added Jun 13, 2009
  • Reaction score 0
  • Comments 0

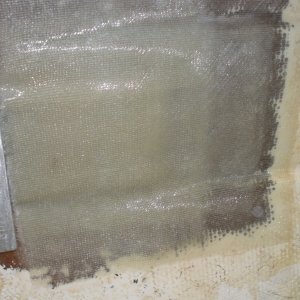

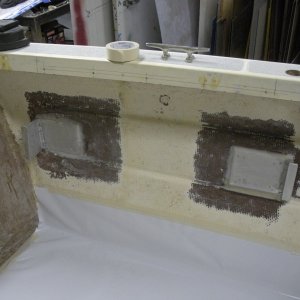

mounting brackets glassed in

mounting brackets glassed in

  • Media owner Catch 22
  • Date added Jun 13, 2009
  • Reaction score 0
  • Comments 0
port/forward mounting bracket for fuel tank, ready to be glassed in

port/forward mounting bracket for fuel tank, ready to be glassed in

  • Media owner Catch 22
  • Date added Jun 13, 2009
  • Reaction score 0
  • Comments 0
1/4" aluminum mounting brackets for fuel tank, ready to be glassed in

1/4" aluminum mounting brackets for fuel tank, ready to be glassed in

  • Media owner Catch 22
  • Date added Jun 13, 2009
  • Reaction score 0
  • Comments 0

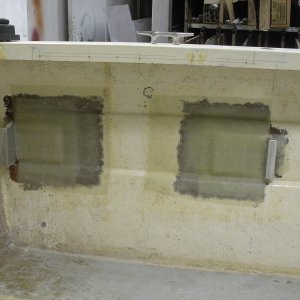

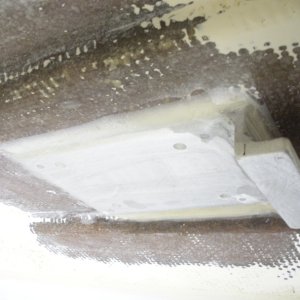

port/aft mounting bracket for the fuel tank glassed in place

port/aft mounting bracket for the fuel tank glassed in place

  • Media owner Catch 22
  • Date added Jun 13, 2009
  • Reaction score 0
  • Comments 0
temporary graphics, till i paint the boat

temporary graphics, till i paint the boat

  • Media owner Catch 22
  • Date added Jul 20, 2008
  • Reaction score 0
  • Comments 0

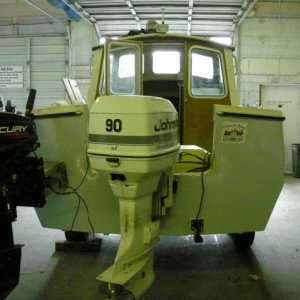

back of boat

back of boat

  • Media owner Catch 22
  • Date added Jun 8, 2008
  • Reaction score 0
  • Comments 0

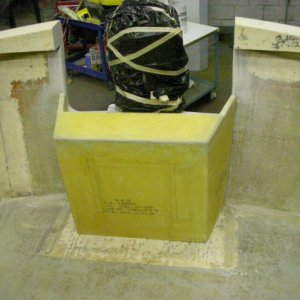

transom box ready to be glassed in, 52 pounds lighter than the one i took out, much more compact too, fuel will move to the sides of the boat

transom box ready to be glassed in, 52 pounds lighter than the one i took out, much more compact too, fuel will move to the sides of the boat

  • Media owner Catch 22
  • Date added Jun 8, 2008
  • Reaction score 0
  • Comments 0
transom box from behind, this is the side that will get glassed to the transom, access will be from a hatch in the front

transom box from behind, this is the side that will get glassed to the transom, access will be from a hatch in the front

  • Media owner Catch 22
  • Date added Jun 8, 2008
  • Reaction score 0
  • Comments 0

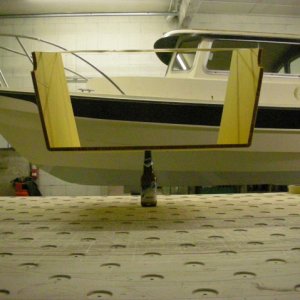

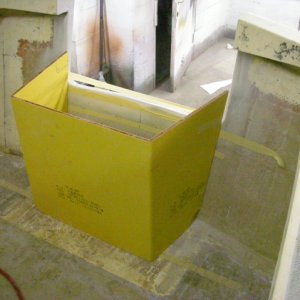

a good fit...

a good fit...

  • Media owner Catch 22
  • Date added May 14, 2008
  • Reaction score 0
  • Comments 0
right now the whole thing only wieghs maybe 2 pounds, after fairing and glassing and paint it will probly wiegh around 13 pounds, much less than the one i cut out

right now the whole thing only wieghs maybe 2 pounds, after fairing and glassing and paint it will probly wiegh around 13 pounds, much less than the one i cut out

  • Media owner Catch 22
  • Date added May 14, 2008
  • Reaction score 0
  • Comments 0

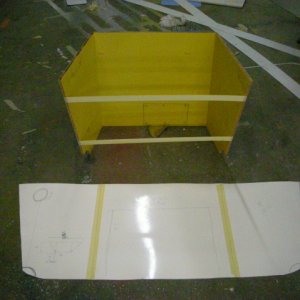

folded and ready to se how it fits

folded and ready to se how it fits

  • Media owner Catch 22
  • Date added May 14, 2008
  • Reaction score 0
  • Comments 0
transom box cut out, ready to fold

transom box cut out, ready to fold

  • Media owner Catch 22
  • Date added May 14, 2008
  • Reaction score 0
  • Comments 0

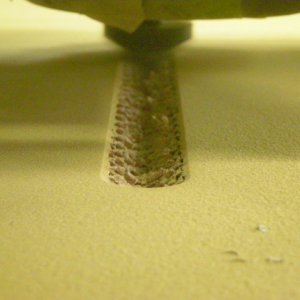

router scoring the composit where i will fold it, making the box out of one piece, instead of many glued together

router scoring the composit where i will fold it, making the box out of one piece, instead of many glued together

  • Media owner Catch 22
  • Date added May 14, 2008
  • Reaction score 0
  • Comments 0

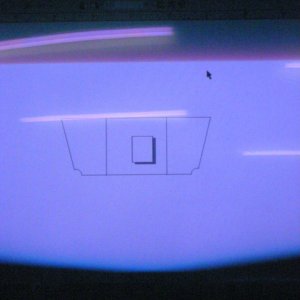

transffered into digital file to cut on CNC router

transffered into digital file to cut on CNC router

  • Media owner Catch 22
  • Date added May 14, 2008
  • Reaction score 0
  • Comments 0
taking measurements of pattern, to be cut out of very light composit core material left over from hydroplane construction

taking measurements of pattern, to be cut out of very light composit core material left over from hydroplane construction

  • Media owner Catch 22
  • Date added May 14, 2008
  • Reaction score 0
  • Comments 0
C

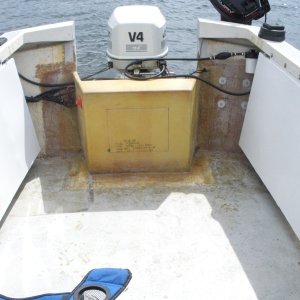

a pretty girl in an ugly dress, cant wait to clean her up...
