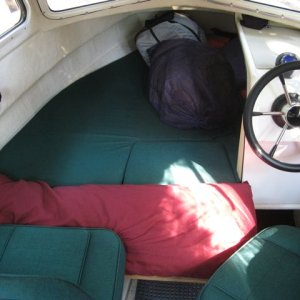

Foam cut back to provide bin storage under dash. Teak handle angled and glued to assist entry & exit from berth

Foam cut back to provide bin storage under dash. Teak handle angled and glued to assist entry & exit from berth

  • Media owner marco422
  • Date added Apr 13, 2011
  • Reaction score 0
  • Comments 0

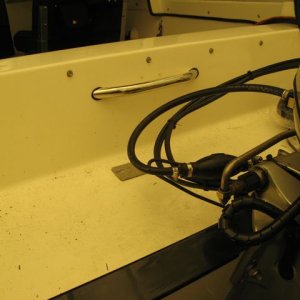

Stainless grab handle installed in well to assist boarding when standing on permatrim

Stainless grab handle installed in well to assist boarding when standing on permatrim

  • Media owner marco422
  • Date added Apr 13, 2011
  • Reaction score 0
  • Comments 0

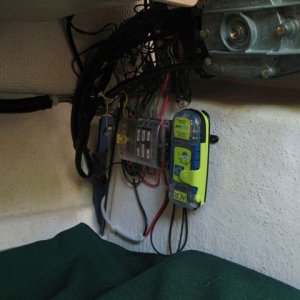

PLB mounted under helm station.

PLB mounted under helm station.

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0

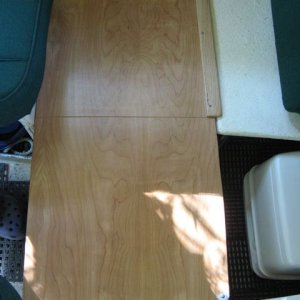

Bed extension (1/2 inch birch ply) resting on oak 1x2 on seat boxes; piano hinge allows unit to fold for storage.

Bed extension (1/2 inch birch ply) resting on oak 1x2 on seat boxes; piano hinge allows unit to fold for storage.

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0

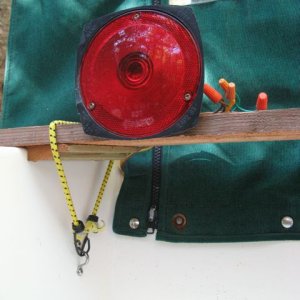

Trailer lights secured above splashwell with bungees; wiring routed through camperback and along port side to bow.

Trailer lights secured above splashwell with bungees; wiring routed through camperback and along port side to bow.

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0

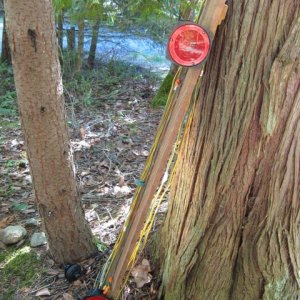

Trailer lights mounted on cedar board for improved reliability.

Trailer lights mounted on cedar board for improved reliability.

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0

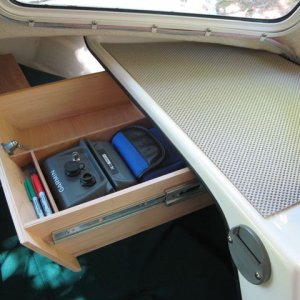

Locking storage drawer with angled front and compartments for GPS/binos/VHF, dividers/pens, other valuables.

Locking storage drawer with angled front and compartments for GPS/binos/VHF, dividers/pens, other valuables.

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0
Stove mount with locking storage drawer to the left.

Stove mount with locking storage drawer to the left.

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0

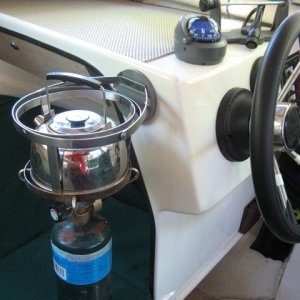

Forespar Mini Galley gimballed propane stove with kettle mounted next to helm; provides heat in a pinch

Forespar Mini Galley gimballed propane stove with kettle mounted next to helm; provides heat in a pinch

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0
Close up of holes drilled in bow roller and anchor shank

Close up of holes drilled in bow roller and anchor shank

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0

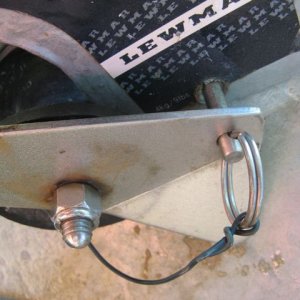

Anchor retainer using quick release pin to allow removal of anchor line from bow roller. Neoprene pad prevents scratches.

Anchor retainer using quick release pin to allow removal of anchor line from bow roller. Neoprene pad prevents scratches.

  • Media owner marco422
  • Date added Sep 25, 2010
  • Reaction score 0
  • Comments 0
Installation for Standard Horizon HX471 handheld VHF with DSC. Cradle keeps radio close to my ear, connects to GPS for positioning and can be plugged in for charging at any time.

Installation for Standard Horizon HX471 handheld VHF with DSC. Cradle keeps radio close to my ear, connects to GPS for positioning and can be plugged in for charging at any time.

  • Media owner marco422
  • Date added Sep 27, 2009
  • Reaction score 0
  • Comments 0

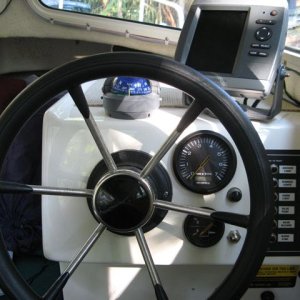

Instrument console: Ritchie Explorer compass, Garmin 545s GPS sounder, tach/ hour, tilt meter, horn button, intermittent wiper button, various electrical switches, 12 volt outlet facing downward under switch panel.

Instrument console: Ritchie Explorer compass, Garmin 545s GPS sounder, tach/ hour, tilt meter, horn button, intermittent wiper button, various electrical switches, 12 volt outlet facing downward under switch panel.

  • Media owner marco422
  • Date added Sep 27, 2009
  • Reaction score 0
  • Comments 0

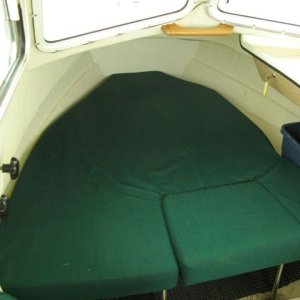

Cushion in place on berth extension. Very comfy! Width is approx 39" (single bed size) across extended section. Length about 7 feet.

Cushion in place on berth extension. Very comfy! Width is approx 39" (single bed size) across extended section. Length about 7 feet.

  • Media owner marco422
  • Date added Sep 27, 2009
  • Reaction score 0
  • Comments 0

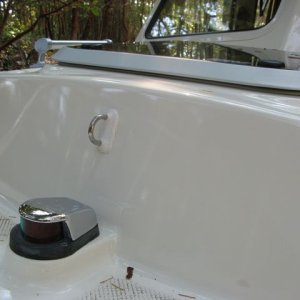

Bow eye installed to provide attachment point for bitter end of anchor line.

Bow eye installed to provide attachment point for bitter end of anchor line.

  • Media owner marco422
  • Date added Sep 27, 2009
  • Reaction score 0
  • Comments 0
Vent visor installed on sliding windows-- cut down from generic car visor (a Bronco model, I think). $40 for a pair.

Vent visor installed on sliding windows-- cut down from generic car visor (a Bronco model, I think). $40 for a pair.

  • Media owner marco422
  • Date added Sep 27, 2009
  • Reaction score 0
  • Comments 0

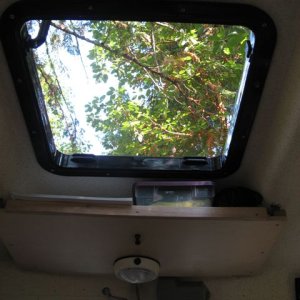

View upwards with hatch open-- hinges on aft side.

View upwards with hatch open-- hinges on aft side.

  • Media owner marco422
  • Date added Sep 27, 2009
  • Reaction score 0
  • Comments 0

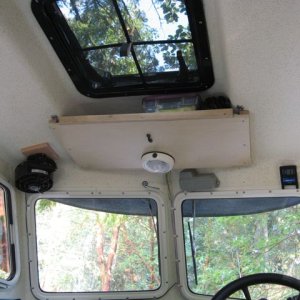

Overhead hatch with screen-- storage shelf forward. Red LED strip (less harsh for night use) installed to interior light circuit and OEM interior light moved forward (uses switch on light casing).

Overhead hatch with screen-- storage shelf forward. Red LED strip (less harsh for night use) installed to interior light circuit and OEM interior light moved forward (uses switch on light casing).

  • Media owner marco422
  • Date added Sep 27, 2009
  • Reaction score 0
  • Comments 0

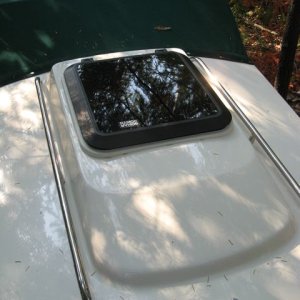

Overhead hatch added to cabin-- outside view. Bowmar 900 series 16" model. Camperback is shown behind hatch.

Overhead hatch added to cabin-- outside view. Bowmar 900 series 16" model. Camperback is shown behind hatch.

  • Media owner marco422
  • Date added Sep 27, 2009
  • Reaction score 0
  • Comments 0

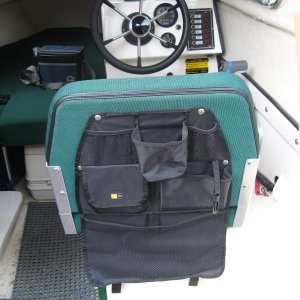

Case Logic seat back caddy under $20. Installed one on each seat.

Case Logic seat back caddy under $20. Installed one on each seat.

  • Media owner marco422
  • Date added Apr 5, 2009
  • Reaction score 0
  • Comments 0
