Since NOTHING will adhere to Starboard, I used butyl tape between the bottom of the holes where they met the cabin top.. tight acorn nuts underneath with fender washers make a durable seal

Since NOTHING will adhere to Starboard, I used butyl tape between the bottom of the holes where they met the cabin top.. tight acorn nuts underneath with fender washers make a durable seal

  • Reaction score 0
  • Comments 0
Working Alone: bolts from cabin roof. To seal I made a small circle of 5200 on bottoms of flanges and around holes on cabin top. The handrails were suspended just above holes for fine alignment without smearing sealant.

Working Alone: bolts from cabin roof. To seal I made a small circle of 5200 on bottoms of flanges and around holes on cabin top. The handrails were suspended just above holes for fine alignment without smearing sealant.

  • Reaction score 0
  • Comments 0
Working Alone: nuts inside cabin wrench on roof

Working Alone: nuts inside cabin wrench on roof

  • Reaction score 0
  • Comments 0
115108E1-99DF-426B-B451-3A6CD73B3EDE

115108E1-99DF-426B-B451-3A6CD73B3EDE

  • Reaction score 0
  • Comments 0

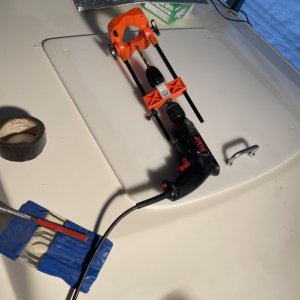

Holes redrilled perpendicular

Holes redrilled perpendicular

  • Reaction score 0
  • Comments 0

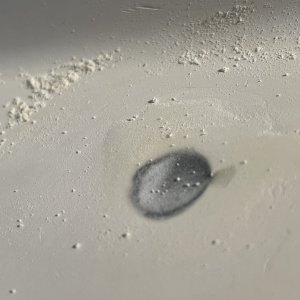

Filled and flush Taped underside of cabin roof and filled with paper funnel after brushing balsa core with unthickened epoxy

Filled and flush Taped underside of cabin roof and filled with paper funnel after brushing balsa core with unthickened epoxy

  • Reaction score 0
  • Comments 0
Reamed and ready to fill

Reamed and ready to fill

  • Reaction score 0
  • Comments 0

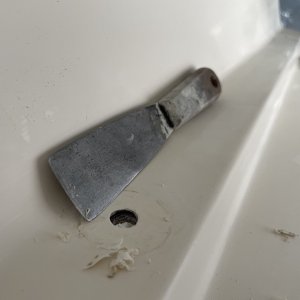

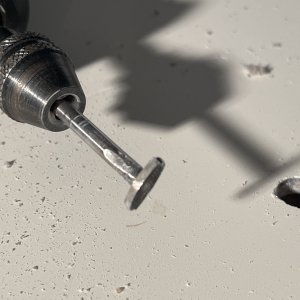

Ground a dremmel saw bit fir reaming core from hole sides

Ground a dremmel saw bit fir reaming core from hole sides

  • Reaction score 0
  • Comments 0

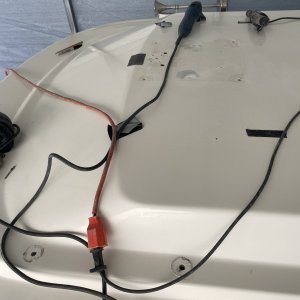

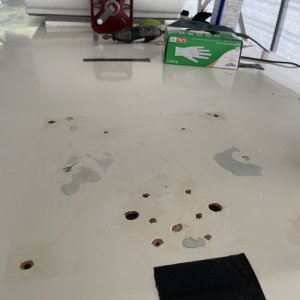

A few holes to fill & drill

A few holes to fill & drill

  • Reaction score 0
  • Comments 0
C8BF0A9F-D4A1-4667-BD1A-BD398A682421

C8BF0A9F-D4A1-4667-BD1A-BD398A682421

  • Reaction score 0
  • Comments 0
D8339454-DB03-4E3D-B893-55E761DB6F0F

D8339454-DB03-4E3D-B893-55E761DB6F0F

  • Reaction score 0
  • Comments 0

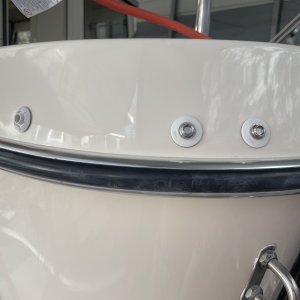

Close up on SNAD connectors some Al plastic and others steel with flex for corvette mounting

Close up on SNAD connectors some Al plastic and others steel with flex for corvette mounting

  • Reaction score 0
  • Comments 0

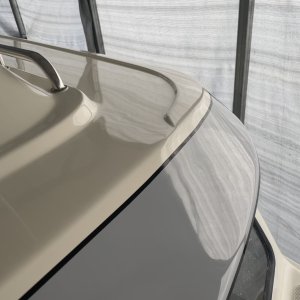

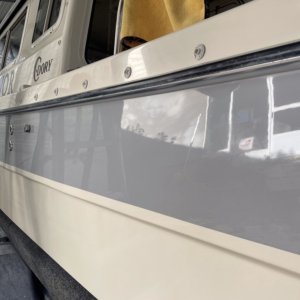

Clean reflection The snaps hold the bottom edges of the mosquito netting- They?re called ?SNADs? and do not require holes to be drilled just prep with their primer. Sailrite carries them

Clean reflection The snaps hold the bottom edges of the mosquito netting- They?re called ?SNADs? and do not require holes to be drilled just prep with their primer. Sailrite carries them

  • Reaction score 0
  • Comments 0
Four glide oat applications up to Second plank above water line

Four glide oat applications up to Second plank above water line

  • Reaction score 0
  • Comments 0

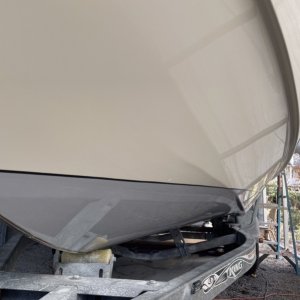

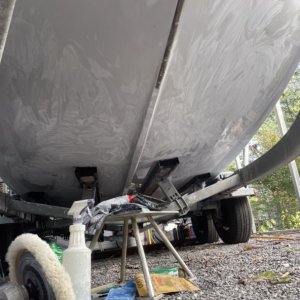

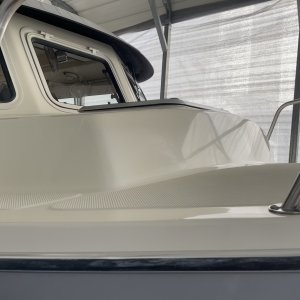

Eight weeks of wet sanding, compounding, and polishing top to bottom

Eight weeks of wet sanding, compounding, and polishing top to bottom

  • Reaction score 0
  • Comments 0

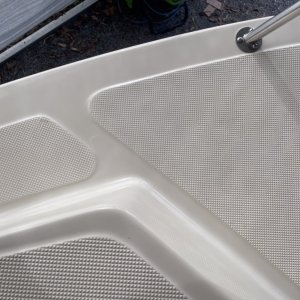

Even got the new skin cleaned and sealed

Even got the new skin cleaned and sealed

  • Reaction score 0
  • Comments 0

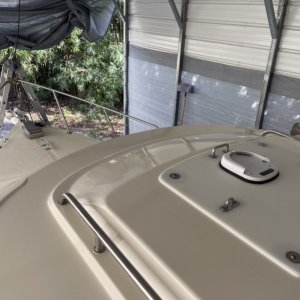

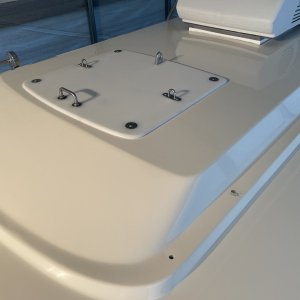

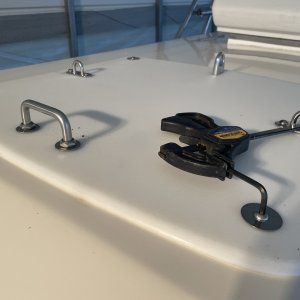

Covered previous holes with large starboard after filling and redrilling holes and rebedding handrails with 5200 to correct cabin roof leaks

Covered previous holes with large starboard after filling and redrilling holes and rebedding handrails with 5200 to correct cabin roof leaks

  • Reaction score 0
  • Comments 0
multimediasmith

Covered previous holes with large starboard after filling and redrilling holes and rebedding handrails with 5200 to correct cabin roof leaks
