And... the cabin door is warped!

And... the cabin door is warped!

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0

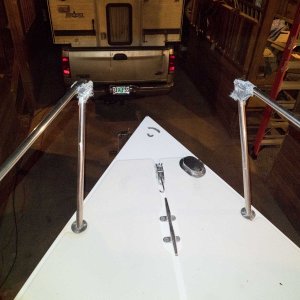

And this is all that's left of the bow rail.

And this is all that's left of the bow rail.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0
This just hurts. This is where the anchor roller tore out. Obvious core damage here.

This just hurts. This is where the anchor roller tore out. Obvious core damage here.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0

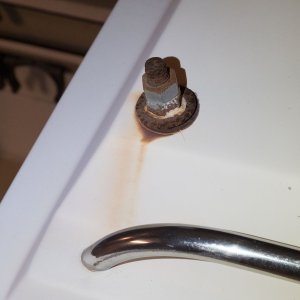

This bolt on starboard roof was where an orange strobe was mounted. There's one on port side as well.

This bolt on starboard roof was where an orange strobe was mounted. There's one on port side as well.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0

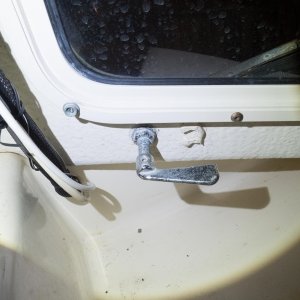

Frozen manual wiper control.

Frozen manual wiper control.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0
Bow eye from inside anchor well.

Bow eye from inside anchor well.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0

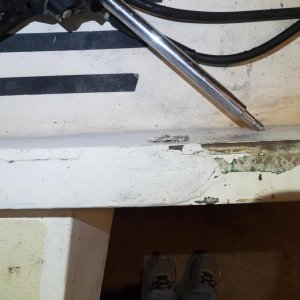

Transom under trim strip shows damage and evidence of past repair. The black plastic strip was missing and a previous owner tried to seal the evident junction between core and fiberglass with epoxy.

Transom under trim strip shows damage and evidence of past repair. The black plastic strip was missing and a previous owner tried to seal the evident junction between core and fiberglass with epoxy.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0

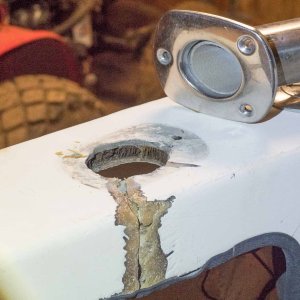

Now it starts to get ugly. This is what happens when you have no backing for bolts holding rod holders and you don't seal holes that go through cored areas. Core is mushy here. Rod holder on other side didn't crack cockpit deck, but I'm sure there is core damage there as well.

Now it starts to get ugly. This is what happens when you have no backing for bolts holding rod holders and you don't seal holes that go through cored areas. Core is mushy here. Rod holder on other side didn't crack cockpit deck, but I'm sure there is core damage there as well.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0

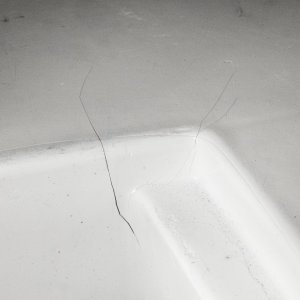

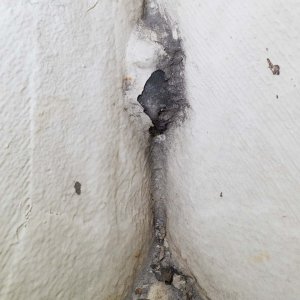

Crack in gelcoat at forward port side of portable toilet storage area.

Crack in gelcoat at forward port side of portable toilet storage area.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 2
There is unknown damage to the hull under a trailer bunk in the same general area as a crack in the gelcoat on the cabin floor at the aft bulkhead at opening to berth area. Also there is a faint crack in the tabbing (4" to rear and hard to see in photo) where bulkhead is tabbed to floor.

There is unknown damage to the hull under a trailer bunk in the same general area as a crack in the gelcoat on the cabin floor at the aft bulkhead at opening to berth area. Also there is a faint crack in the tabbing (4" to rear and hard to see in photo) where bulkhead is tabbed to floor.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 1

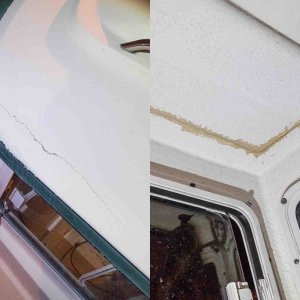

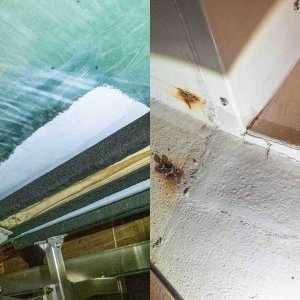

There is a crack in the fiberglass eyebrow on the port side of the roof in the same general area as a poorly repaired crack in the cabin ceiling fiberglass.

There is a crack in the fiberglass eyebrow on the port side of the roof in the same general area as a poorly repaired crack in the cabin ceiling fiberglass.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0

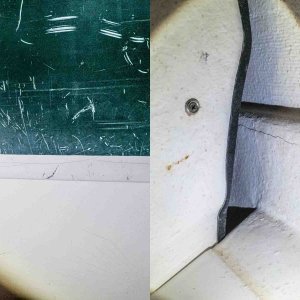

Left half of photo shows a faint crack on the starboard hull gelcoat (just below green stripe) just above a chine. Right half of photo shows a crack in the gelcoat on the inside of the hull at the forward cabin bulkhead (as seen from berth area), just below the top of the chine.

Left half of photo shows a faint crack on the starboard hull gelcoat (just below green stripe) just above a chine. Right half of photo shows a crack in the gelcoat on the inside of the hull at the forward cabin bulkhead (as seen from berth area), just below the top of the chine.

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 2

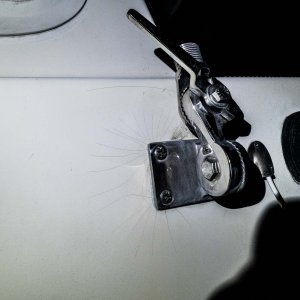

Gelcoat stress cracks around antenna mount

Gelcoat stress cracks around antenna mount

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0
A really ugly rub rail

A really ugly rub rail

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0

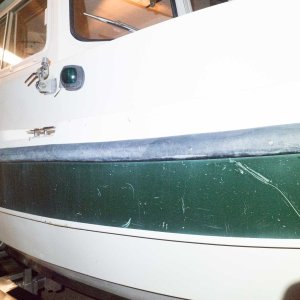

Scratches and an ugly rub rail

Scratches and an ugly rub rail

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 1

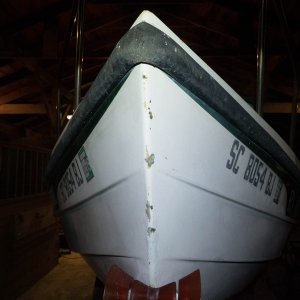

Gelcoat damage

Gelcoat damage

  • Media owner pcg
  • Date added Jan 4, 2019
  • Reaction score 0
  • Comments 0
P

Gelcoat damage
