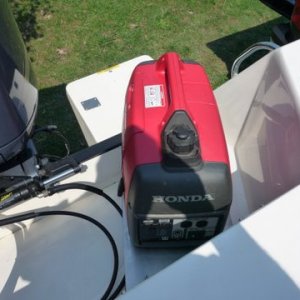

I only leave the generator out here when we are anchored or when we are in slip and need more room in the cockpit

I only leave the generator out here when we are anchored or when we are in slip and need more room in the cockpit

  • Media owner Will-C
  • Date added Apr 10, 2011
  • Reaction score 0
  • Comments 0

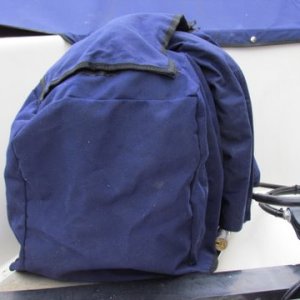

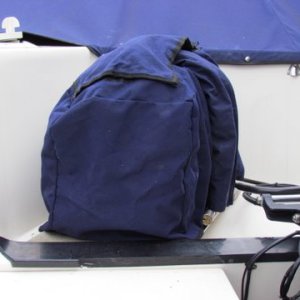

Sunbrella canvas cover with locking chain etc

Sunbrella canvas cover with locking chain etc

  • Media owner Will-C
  • Date added Apr 10, 2011
  • Reaction score 0
  • Comments 0

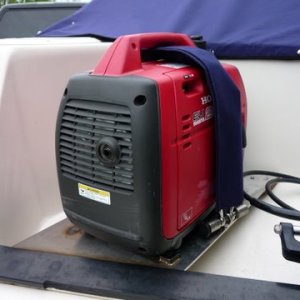

does not look quite as hulky now with the chain covered. Canvas cover almost finished for whole generator, film in a week or so

does not look quite as hulky now with the chain covered. Canvas cover almost finished for whole generator, film in a week or so

  • Media owner Will-C
  • Date added May 2, 2010
  • Reaction score 0
  • Comments 0

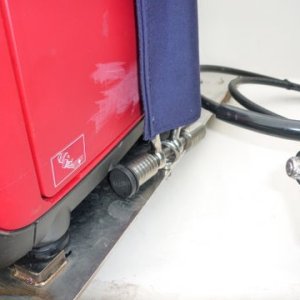

chain with sunbrella covering trailer tonque lock in a bored out shackle thru eye in the plated eye has bolt head welded on the undeneath side of plate.

chain with sunbrella covering trailer tonque lock in a bored out shackle thru eye in the plated eye has bolt head welded on the undeneath side of plate.

  • Media owner Will-C
  • Date added May 2, 2010
  • Reaction score 0
  • Comments 0
Another way to lock using chain and shackle, a padlock but that rattles if you run it with the padlock in place

Another way to lock using chain and shackle, a padlock but that rattles if you run it with the padlock in place

  • Media owner Will-C
  • Date added May 2, 2010
  • Reaction score 0
  • Comments 0
my fuel water separator sits outside on the other end of this motor well and has an extra outlet for me to run a direct fuel line to the generator. I do have a Wise extended run tank.

my fuel water separator sits outside on the other end of this motor well and has an extra outlet for me to run a direct fuel line to the generator. I do have a Wise extended run tank.

  • Media owner Will-C
  • Date added Apr 13, 2010
  • Reaction score 0
  • Comments 0

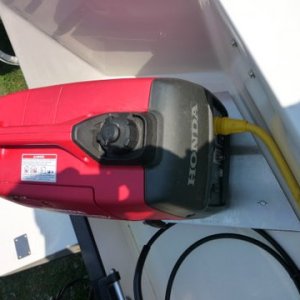

exhaust out the back, motor well to keep noise and fumes at a mimimum,boat should swing into the wind. Summer in New Jersey it's nice to close up the boat and run air conditioning to sleep cool with out the flying critters climbing in bed with you.

exhaust out the back, motor well to keep noise and fumes at a mimimum,boat should swing into the wind. Summer in New Jersey it's nice to close up the boat and run air conditioning to sleep cool with out the flying critters climbing in bed with you.

  • Media owner Will-C
  • Date added Apr 13, 2010
  • Reaction score 0
  • Comments 0

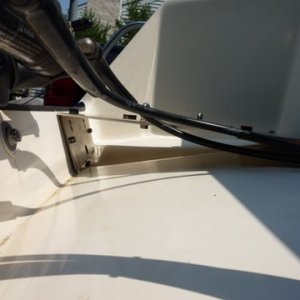

drilled hole on vertical side of plate for drain hole to match up with boats motor well scupper. Getting the correct angle was a pain to get plate to sit level while getting tight to the transom. When the boat is in the water and loaded the plate seems to be parallel with the water

drilled hole on vertical side of plate for drain hole to match up with boats motor well scupper. Getting the correct angle was a pain to get plate to sit level while getting tight to the transom. When the boat is in the water and loaded the plate seems to be parallel with the water

  • Media owner Will-C
  • Date added Apr 13, 2010
  • Reaction score 0
  • Comments 0

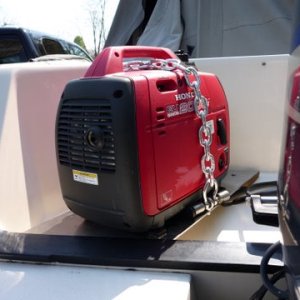

Generator with northeast style theft deterrents installed. Boy this is starting to look like an over kill. Chain will get canvas cover except for the ends

Generator with northeast style theft deterrents installed. Boy this is starting to look like an over kill. Chain will get canvas cover except for the ends

  • Media owner Will-C
  • Date added Apr 13, 2010
  • Reaction score 0
  • Comments 0

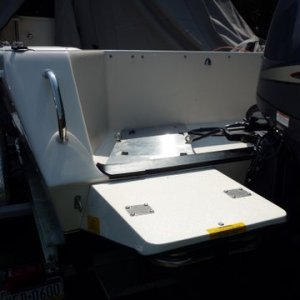

plate installed on existing swim platform bolts, small angles welded to prevent generator from sliding around. will make wood or starboard plate with anti skid to go on plate when generator is not in use.Will also double use as a bait board. Pic's later. Just using generator at anchor stays in cockpit while underway.

plate installed on existing swim platform bolts, small angles welded to prevent generator from sliding around. will make wood or starboard plate with anti skid to go on plate when generator is not in use.Will also double use as a bait board. Pic's later. Just using generator at anchor stays in cockpit while underway.

  • Media owner Will-C
  • Date added Apr 13, 2010
  • Reaction score 0
  • Comments 0

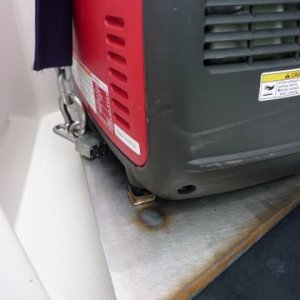

Drilled out shackle to fit a trailer pin lock, chain slips onto shackle pin lock goes thru a welded eye mounted to the stainless steel plate

Drilled out shackle to fit a trailer pin lock, chain slips onto shackle pin lock goes thru a welded eye mounted to the stainless steel plate

  • Media owner Will-C
  • Date added Apr 13, 2010
  • Reaction score 0
  • Comments 0

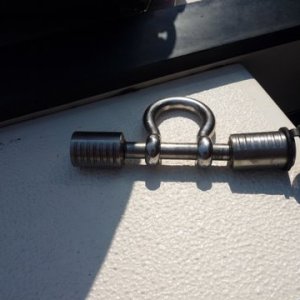

trailer hitch lock used to lock chain to plate via stainles shackle. Standard shackle bored out to except pin lock

trailer hitch lock used to lock chain to plate via stainles shackle. Standard shackle bored out to except pin lock

  • Media owner Will-C
  • Date added Apr 13, 2010
  • Reaction score 0
  • Comments 0

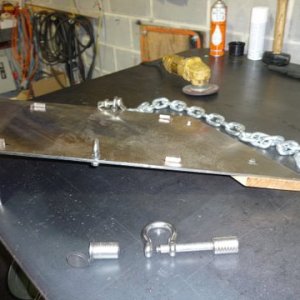

bracket uses existing swim bracket bolts to mount,front sits on a strip of teak not bolts to the the boat ,1/4 thick stainless loops on either side have welded bolts the loops used for locking the generator in place to keep it out of the cabin should we leave the boat.

bracket uses existing swim bracket bolts to mount,front sits on a strip of teak not bolts to the the boat ,1/4 thick stainless loops on either side have welded bolts the loops used for locking the generator in place to keep it out of the cabin should we leave the boat.

  • Media owner Will-C
  • Date added Apr 13, 2010
  • Reaction score 0
  • Comments 0
W

Generator with northeast style theft deterrents installed. Boy this is starting to look like an over kill. Chain will get canvas cover except for the ends
