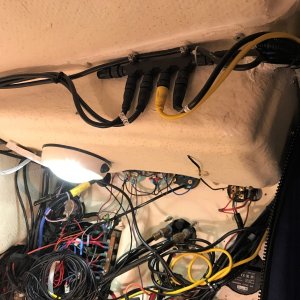

View of Network 5 way T and CCU

View of Network 5 way T and CCU

  • Reaction score 0
  • Comments 0

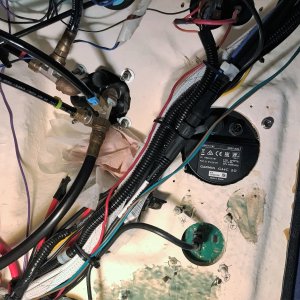

Shadow drive mounted on starboard side of helm.

Shadow drive mounted on starboard side of helm.

  • Reaction score 0
  • Comments 0

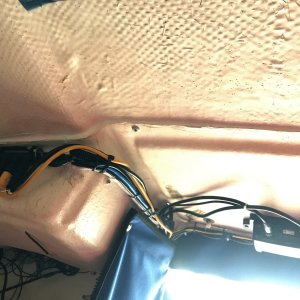

Main network T mounted in Vberth above back of helm.

Main network T mounted in Vberth above back of helm.

  • Reaction score 0
  • Comments 0

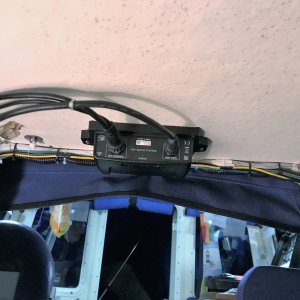

CCU was mounted at top of VBerth entry way.

CCU was mounted at top of VBerth entry way.

  • Reaction score 0
  • Comments 0

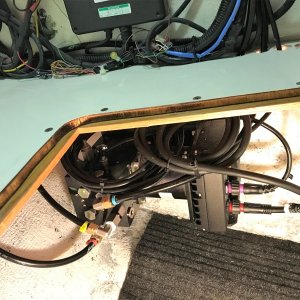

View of Smart pump with all hydraulic and electric lines installed. Slack of electric lines was coiled up and set on top of pump.

View of Smart pump with all hydraulic and electric lines installed. Slack of electric lines was coiled up and set on top of pump.

  • Reaction score 0
  • Comments 0

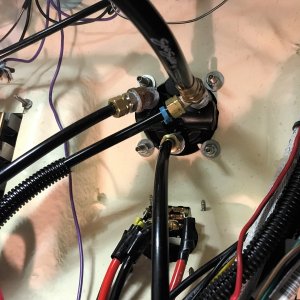

Back of the helm plumbing. Bottom line is return hose to Smart pump. Single vinyl hose goes to Shadow drive, and past that is tee\'d off to Smart pump and main steering hose. Tee is main steering hose and vinyl hose to Smart pump.

Back of the helm plumbing. Bottom line is return hose to Smart pump. Single vinyl hose goes to Shadow drive, and past that is tee\'d off to Smart pump and main steering hose. Tee is main steering hose and vinyl hose to Smart pump.

  • Reaction score 0
  • Comments 0

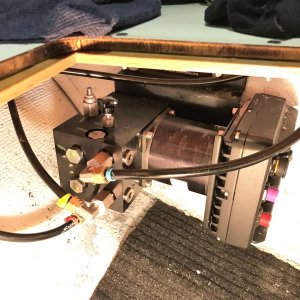

Smart pump now plumbed with it\'s hydraulic lines

Smart pump now plumbed with it\'s hydraulic lines

  • Reaction score 0
  • Comments 0

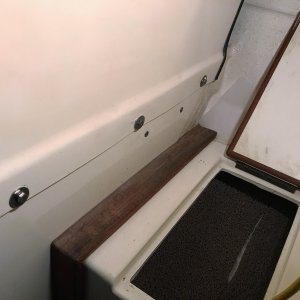

The Smart pump is held by 4 screws thru the bulkhead. 2 at the bottom of the bulkhead just above the foot compartment door, the other two below the door.

The Smart pump is held by 4 screws thru the bulkhead. 2 at the bottom of the bulkhead just above the foot compartment door, the other two below the door.

  • Reaction score 0
  • Comments 0
Different view of Smart Pump

Different view of Smart Pump

  • Reaction score 0
  • Comments 0

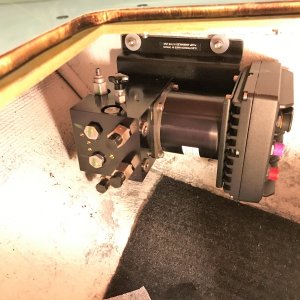

Garmin Smart pump installed under V-Berth

Garmin Smart pump installed under V-Berth

  • Reaction score 0
  • Comments 1

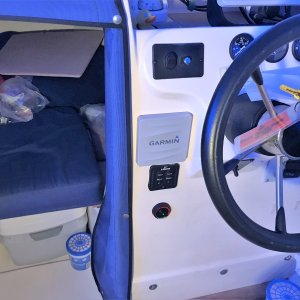

New control head in dash, with it\'s protective cover on.

New control head in dash, with it\'s protective cover on.

  • Reaction score 0
  • Comments 0
Back of new control head installed in dash. (Back of Steering wheel has old auto pilot lines.)

Back of new control head installed in dash. (Back of Steering wheel has old auto pilot lines.)

  • Reaction score 0
  • Comments 0

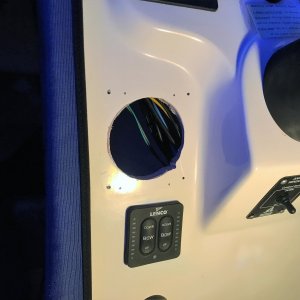

Hole in dash where I removed old RayMarine control head and will install new Garmin control head

Hole in dash where I removed old RayMarine control head and will install new Garmin control head

  • Reaction score 0
  • Comments 0
colbysmith

Hole in dash where I removed old RayMarine control head and will install new Garmin control head

  • Items 13
  • Album owner colbysmith
  • Date created
New Garmin Reactor 40 Autopilot with Smart Pump install.
