These were $34 each from Amazon, but this particular brand I see is not currently available. I use one at the stern and one at the bow.

These were $34 each from Amazon, but this particular brand I see is not currently available. I use one at the stern and one at the bow.

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0

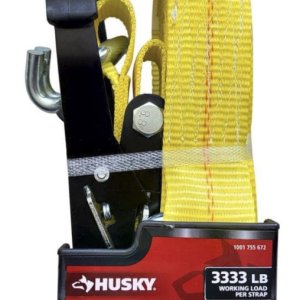

These are a bargain at $10 each from Home Depot. I use four total.

These are a bargain at $10 each from Home Depot. I use four total.

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0
I used four ratchet straps and two recovery straps to hang the boat. The ratchet straps are attached to chain that's bolted to ceiling beams. The ratchets can be used to raise or lower the boat to reposition jack stands, or remove or replace the trailer.

I used four ratchet straps and two recovery straps to hang the boat. The ratchet straps are attached to chain that's bolted to ceiling beams. The ratchets can be used to raise or lower the boat to reposition jack stands, or remove or replace the trailer.

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0

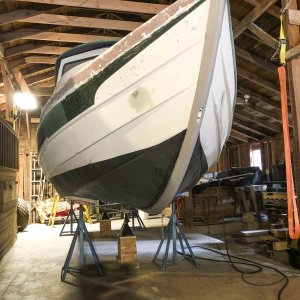

Bottom work is finished and the boat is now supported in six locations. Note the yellow ratchet strap and orange recovery strap hanging to the right.

Bottom work is finished and the boat is now supported in six locations. Note the yellow ratchet strap and orange recovery strap hanging to the right.

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0
After the bottom of the hull was repaired I lowered the boat and supported it in three locations while I applied bottom paint.

After the bottom of the hull was repaired I lowered the boat and supported it in three locations while I applied bottom paint.

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0
Jack stand with keel adapter in place

Jack stand with keel adapter in place

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0

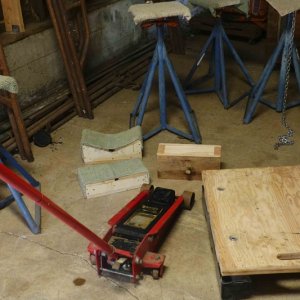

Jack stand and adapters

Jack stand and adapters

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0

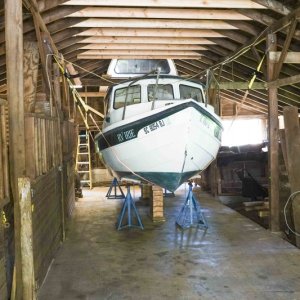

Trailer removed and jack stands in high position with initial blocking under keel

Trailer removed and jack stands in high position with initial blocking under keel

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0

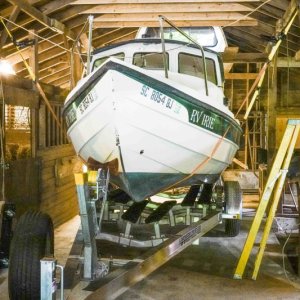

The floor jack was used to lift the stern, then a tow strap was put under the stern with each end of the tow strap attached to a ratchet strap suspended with chain from the ceiling. Then the same was done to the bow. Now the trailer can be pulled out form under the boat. Although the floor jack was used to do the lifting, I discovered that I can lift or lower the boat simply by using the ratchet handles alone.

The floor jack was used to lift the stern, then a tow strap was put under the stern with each end of the tow strap attached to a ratchet strap suspended with chain from the ceiling. Then the same was done to the bow. Now the trailer can be pulled out form under the boat. Although the floor jack was used to do the lifting, I discovered that I can lift or lower the boat simply by using the ratchet handles alone.

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0

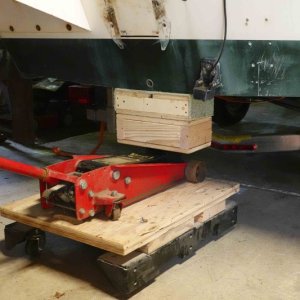

Here the floor jack is being used with the extension for lifting the stern.

Here the floor jack is being used with the extension for lifting the stern.

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0

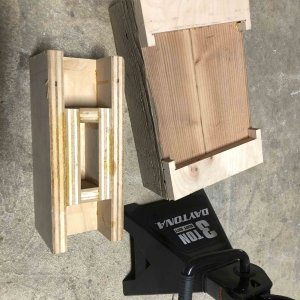

Assembled with extension for lifting bow

Assembled with extension for lifting bow

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0
Homemade dolly + floor jack + jack extensions

Homemade dolly + floor jack + jack extensions

  • Media owner pcg
  • Date added Sep 28, 2022
  • Reaction score 0
  • Comments 0
