This photo shows the boat's original batteries (two Group 24 flooded cell batteries) and switch (1-2-Both-All). Many leads going right to battery terminals, no buses, just not very tidy. Battery trays were screwed right into core, original (leaky) hatch lids, etc.

This photo shows the boat's original batteries (two Group 24 flooded cell batteries) and switch (1-2-Both-All). Many leads going right to battery terminals, no buses, just not very tidy. Battery trays were screwed right into core, original (leaky) hatch lids, etc.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0
Shunt for Victron battery monitor. This goes between house battery and negative bus (loads). See note in previous photo(s) explaining why there are dangling wires, etc.

Shunt for Victron battery monitor. This goes between house battery and negative bus (loads). See note in previous photo(s) explaining why there are dangling wires, etc.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0
Looking straight aft in starboard lazarette. ACR to the right, trim tab relay straight aft, bilge pump discharge to left. See note on previous photo(s)

Looking straight aft in starboard lazarette. ACR to the right, trim tab relay straight aft, bilge pump discharge to left. See note on previous photo(s)

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0
ACR - see note on previous photo.

ACR - see note on previous photo.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0
Positive bus - see note on previous photo.

Positive bus - see note on previous photo.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0
Negative bus - see note on previous photo.

Negative bus - see note on previous photo.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0

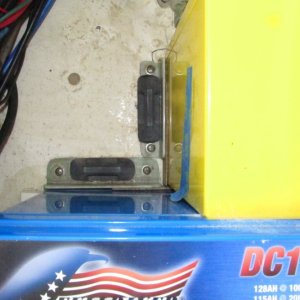

Weld Mount footman loop holds tie down strap - see note on previous photo.

Weld Mount footman loop holds tie down strap - see note on previous photo.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0

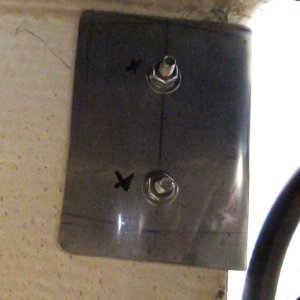

Looking straight up from below laz shelf at bottom of shelf, this is the bottom of a stainless bracket plus Starboard-pad-you-cannot-see that keeps battery from being able to shift to port. This is on the opposite end to the Starboard cleat in previous photo - see note on previous photo.

Looking straight up from below laz shelf at bottom of shelf, this is the bottom of a stainless bracket plus Starboard-pad-you-cannot-see that keeps battery from being able to shift to port. This is on the opposite end to the Starboard cleat in previous photo - see note on previous photo.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0

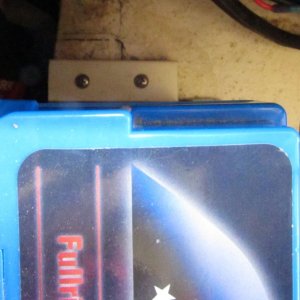

Starboard cleat, fasteners tapped into epoxy plugs in cored laz shelf - see note on previous photo.

Starboard cleat, fasteners tapped into epoxy plugs in cored laz shelf - see note on previous photo.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0
As they say: Pardon the construction mess while we improve the premises! Another C-Brat wanted to see a few detail photos, but I happen to be in the middle of doing some work in this locker, so ties and clamps are off, wires are dangling, and certain improvements have yet to be made. It's not my lazarette's best moment ;) Fiberglass angles work as cleats. Weld Mount footman loops adhered to them hold battery straps. Angles are fastened to laz shelf with machine screws tapped into epoxy plugs in cored shelf.

As they say: Pardon the construction mess while we improve the premises! Another C-Brat wanted to see a few detail photos, but I happen to be in the middle of doing some work in this locker, so ties and clamps are off, wires are dangling, and certain improvements have yet to be made. It's not my lazarette's best moment ;) Fiberglass angles work as cleats. Weld Mount footman loops adhered to them hold battery straps. Angles are fastened to laz shelf with machine screws tapped into epoxy plugs in cored shelf.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0

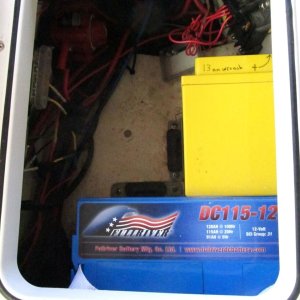

As they say: Pardon the construction mess while we improve the premises! Another C-Brat wanted to see a few detail photos, but I happen to be in the middle of doing some work in this locker, so ties and clamps are off, wires are dangling, and certain improvements have yet to be made. It's not my lazarette's best moment ;) Overview of how Group 31 house battery (blue) and smaller start battery (yellow) fit in starboard lazarette.

As they say: Pardon the construction mess while we improve the premises! Another C-Brat wanted to see a few detail photos, but I happen to be in the middle of doing some work in this locker, so ties and clamps are off, wires are dangling, and certain improvements have yet to be made. It's not my lazarette's best moment ;) Overview of how Group 31 house battery (blue) and smaller start battery (yellow) fit in starboard lazarette.

  • Media owner Sunbeam
  • Date added Aug 21, 2014
  • Reaction score 0
  • Comments 0

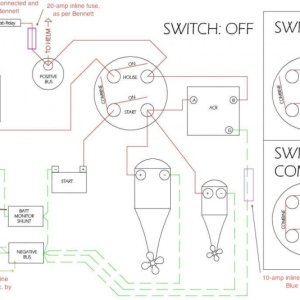

My electrical system 8-2014

My electrical system 8-2014

  • Media owner Sunbeam
  • Date added Aug 19, 2014
  • Reaction score 0
  • Comments 0

  • Media owner Sunbeam
  • Date added Aug 9, 2014
  • Reaction score 0
  • Comments 0

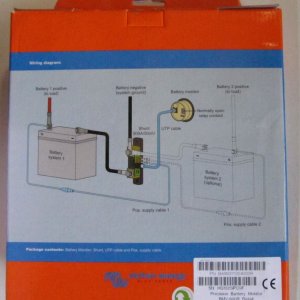

Victron BMV-600S new in box (back)

Victron BMV-600S new in box (back)

  • Media owner Sunbeam
  • Date added Aug 9, 2014
  • Reaction score 0
  • Comments 0
Victron BMV-600S new in box (front)

Victron BMV-600S new in box (front)

  • Media owner Sunbeam
  • Date added Aug 9, 2014
  • Reaction score 0
  • Comments 0

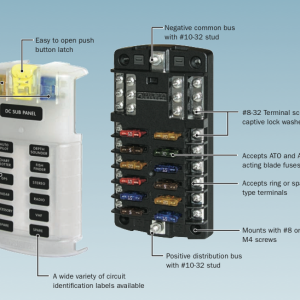

fuse block

fuse block

  • Media owner Sunbeam
  • Date added Jan 3, 2014
  • Reaction score 0
  • Comments 0

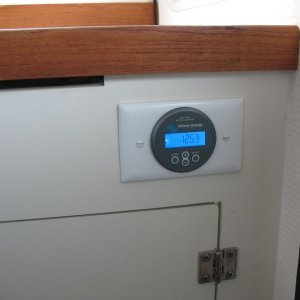

This is the gauge part of the Victron BMV-602S battery monitor. It "wires in" with a simple click of a Cat-5 type cable end. I was installing this "on the road," without access to a lot of tools, and there was a left over hole here from where the Wallas control used to be. So I decided to put it here initially and see how I liked it. I just bought a blank outlet cover from a hardware store and cut it to fit the gauge. This allowed me to make the best use of the existing hole. Now that I have used it for awhile, I think I would like to have it at the helm, so I can also easily view it underway, so it's on my to-do list when I next have access to tools/vacuum/etc.

This is the gauge part of the Victron BMV-602S battery monitor. It "wires in" with a simple click of a Cat-5 type cable end. I was installing this "on the road," without access to a lot of tools, and there was a left over hole here from where the Wallas control used to be. So I decided to put it here initially and see how I liked it. I just bought a blank outlet cover from a hardware store and cut it to fit the gauge. This allowed me to make the best use of the existing hole. Now that I have used it for awhile, I think I would like to have it at the helm, so I can also easily view it underway, so it's on my to-do list when I next have access to tools/vacuum/etc.

  • Media owner Sunbeam
  • Date added Dec 8, 2013
  • Reaction score 0
  • Comments 0

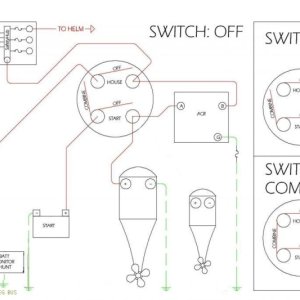

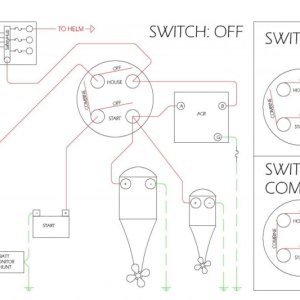

Almost current version of my electrical system in the starboard lazarette (next drawing has corrected slight mistake with the way the start ground wire was drawn). Thanks to AK Angler for the drawing. (I'm leaving all of the iterations in the album since they are referred to in various posts and I don't want to break the links.) Note that the negative buss is not shown because it adds clutter to the drawing.

Almost current version of my electrical system in the starboard lazarette (next drawing has corrected slight mistake with the way the start ground wire was drawn). Thanks to AK Angler for the drawing. (I'm leaving all of the iterations in the album since they are referred to in various posts and I don't want to break the links.) Note that the negative buss is not shown because it adds clutter to the drawing.

  • Media owner Sunbeam
  • Date added Nov 15, 2013
  • Reaction score 0
  • Comments 0

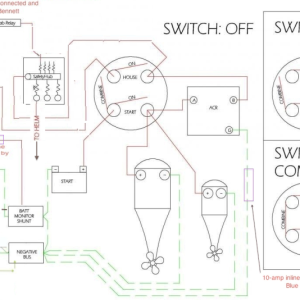

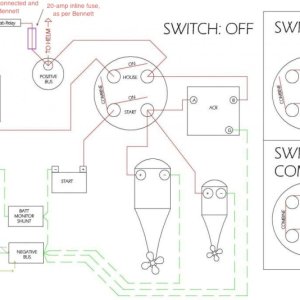

My electrical system 10-2013 AK Angler, annotated 5

My electrical system 10-2013 AK Angler, annotated 5

  • Media owner Sunbeam
  • Date added Nov 15, 2013
  • Reaction score 0
  • Comments 0
My electrical system 10-2013 AK Angler, annotated 4

My electrical system 10-2013 AK Angler, annotated 4

  • Media owner Sunbeam
  • Date added Oct 28, 2013
  • Reaction score 0
  • Comments 0
My electrical system 10-2013 AK Angler, annotated 2

My electrical system 10-2013 AK Angler, annotated 2

  • Media owner Sunbeam
  • Date added Oct 24, 2013
  • Reaction score 0
  • Comments 0
My electrical system 10-2013 AK Angler, annotated

My electrical system 10-2013 AK Angler, annotated

  • Media owner Sunbeam
  • Date added Oct 24, 2013
  • Reaction score 0
  • Comments 0
Safety hub 100

Safety hub 100

  • Media owner Sunbeam
  • Date added Oct 18, 2013
  • Reaction score 0
  • Comments 0
ACR start isolation

ACR start isolation

  • Media owner Sunbeam
  • Date added Apr 5, 2013
  • Reaction score 0
  • Comments 0
S

Note: Things have changed since this photo; I think I was showing the Weld Mount studs or ? Leaving it here because it has been linked to in posts.
