More protective tubing to protect brake lines

More protective tubing to protect brake lines

  • Media owner Will-C
  • Date added Nov 3, 2014
  • Reaction score 0
  • Comments 0
Note brake hoses sleeved in clear plastic tubing and tie wrapped to prevent rub through.

Note brake hoses sleeved in clear plastic tubing and tie wrapped to prevent rub through.

  • Media owner Will-C
  • Date added Nov 3, 2014
  • Reaction score 0
  • Comments 0
Lower motor until you squish the hard rubber a little and then trailer away

Lower motor until you squish the hard rubber a little and then trailer away

  • Media owner Will-C
  • Date added Nov 3, 2014
  • Reaction score 0
  • Comments 0
Just slid down over tilt rod. On our 150 hp motor there is a grease fitting that can interfere so we always use the port tilt rod

Just slid down over tilt rod. On our 150 hp motor there is a grease fitting that can interfere so we always use the port tilt rod

  • Media owner Will-C
  • Date added Nov 3, 2014
  • Reaction score 0
  • Comments 0
Just tilt motor up all the way

Just tilt motor up all the way

  • Media owner Will-C
  • Date added Nov 3, 2014
  • Reaction score 0
  • Comments 0
New to us Yamaha Motor stop for trailering

New to us Yamaha Motor stop for trailering

  • Media owner Will-C
  • Date added Nov 3, 2014
  • Reaction score 0
  • Comments 0
replaced cable with chains reused snap hooks

replaced cable with chains reused snap hooks

  • Media owner Will-C
  • Date added Jan 27, 2014
  • Reaction score 0
  • Comments 0
Retaining cable fails in half hooking up in 11 degree weather. Coated cable looked to have had corrosion caused by road salt just past the crimp. Removed and replaced with chain

Retaining cable fails in half hooking up in 11 degree weather. Coated cable looked to have had corrosion caused by road salt just past the crimp. Removed and replaced with chain

  • Media owner Will-C
  • Date added Jan 27, 2014
  • Reaction score 0
  • Comments 0
Rear view this should never break Used a 10.5" square piece of multiply conveyor belt. It can be cut with a sharp razor knife. Use over sized drill bits for holes when drilling the belt material. 30k + plus miles this is our original license plate.

Rear view this should never break Used a 10.5" square piece of multiply conveyor belt. It can be cut with a sharp razor knife. Use over sized drill bits for holes when drilling the belt material. 30k + plus miles this is our original license plate.

  • Media owner Will-C
  • Date added Aug 24, 2013
  • Reaction score 0
  • Comments 0
stainless steel fishing wire rated #90 test with crimps crimpers

stainless steel fishing wire rated #90 test with crimps crimpers

  • Media owner Will-C
  • Date added Aug 24, 2013
  • Reaction score 0
  • Comments 0

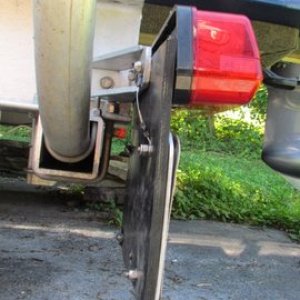

side view of finished project, note plastic backing plate in between the license plate and the conveyor belting

side view of finished project, note plastic backing plate in between the license plate and the conveyor belting

  • Media owner Will-C
  • Date added Aug 24, 2013
  • Reaction score 0
  • Comments 0

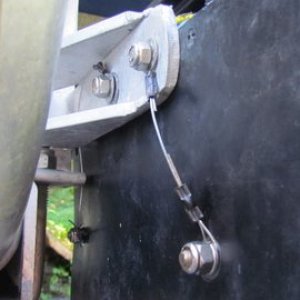

5/16 thick multiply conveyor belting, 90 # stainless stranded fishing wire with crimped ends for license plate retention

5/16 thick multiply conveyor belting, 90 # stainless stranded fishing wire with crimped ends for license plate retention

  • Media owner Will-C
  • Date added Aug 24, 2013
  • Reaction score 0
  • Comments 0

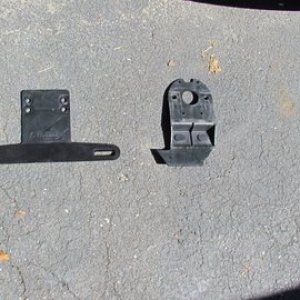

the standard plastic license plate holder failed unit on right $1.99 replacement from Defender on left

the standard plastic license plate holder failed unit on right $1.99 replacement from Defender on left

  • Media owner Will-C
  • Date added Aug 24, 2013
  • Reaction score 0
  • Comments 0
did both sides we have over 20k on our trailer. Don't want cheap brackets breaking and losing licence plate or letting LED lights get road rash.

did both sides we have over 20k on our trailer. Don't want cheap brackets breaking and losing licence plate or letting LED lights get road rash.

  • Media owner Will-C
  • Date added Jan 20, 2013
  • Reaction score 0
  • Comments 0

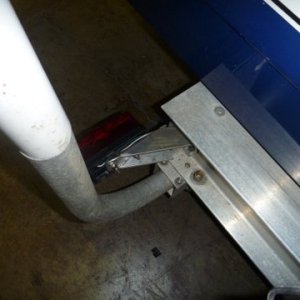

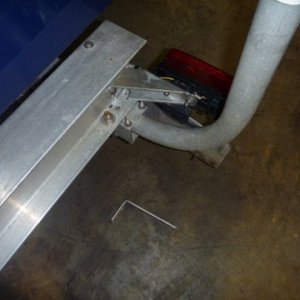

Added gussets to light and licence plate bracket. Next need to add a loop of stainless steel stranded wire to loop around the frame and licence plate. The new bracket is also thicker adding the bottom gusset was a loser as it had to be cut away some to clear a bolt. The old bracket is laying on the floor

Added gussets to light and licence plate bracket. Next need to add a loop of stainless steel stranded wire to loop around the frame and licence plate. The new bracket is also thicker adding the bottom gusset was a loser as it had to be cut away some to clear a bolt. The old bracket is laying on the floor

  • Media owner Will-C
  • Date added Jan 20, 2013
  • Reaction score 0
  • Comments 0

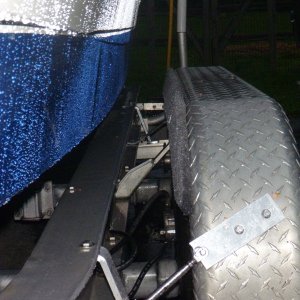

New fender braces by Float On another effort to keep fenders from shaking

New fender braces by Float On another effort to keep fenders from shaking

  • Media owner Will-C
  • Date added May 1, 2012
  • Reaction score 0
  • Comments 0

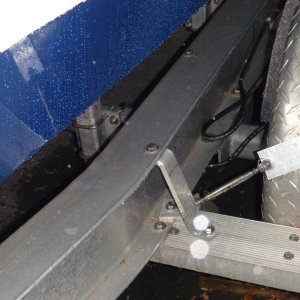

Float- On fender braces added white dots are rain drops on camera lens

Float- On fender braces added white dots are rain drops on camera lens

  • Media owner Will-C
  • Date added May 1, 2012
  • Reaction score 0
  • Comments 0
Ready to install fender brace provided by Float On.Seems like it should be longer and have different bends so it will attach further out on the fender mounting channel

Ready to install fender brace provided by Float On.Seems like it should be longer and have different bends so it will attach further out on the fender mounting channel

  • Media owner Will-C
  • Date added Mar 31, 2012
  • Reaction score 0
  • Comments 0

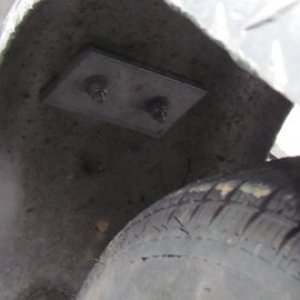

backing plate

backing plate

  • Media owner Will-C
  • Date added Mar 31, 2012
  • Reaction score 0
  • Comments 0
rear of fender

rear of fender

  • Media owner Will-C
  • Date added Mar 31, 2012
  • Reaction score 0
  • Comments 0

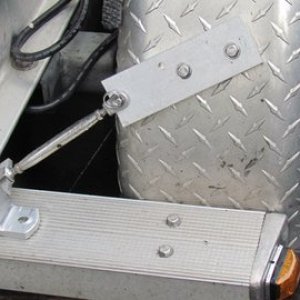

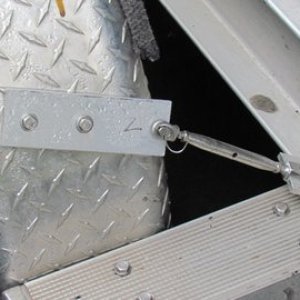

Used existing hole and bolt added the turnbuckle mounted wiith backing plate tightened up turnbuckle. Did stiffen up fenders added to front and back both sides

Used existing hole and bolt added the turnbuckle mounted wiith backing plate tightened up turnbuckle. Did stiffen up fenders added to front and back both sides

  • Media owner Will-C
  • Date added Mar 31, 2012
  • Reaction score 0
  • Comments 0

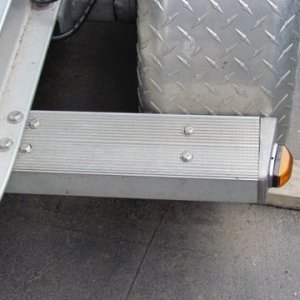

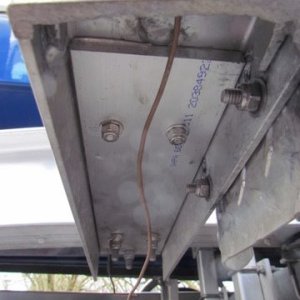

stainless steel bolt heads on the fender support show plate bolted in underneath step all the way thru and bolted to the trailers frame

stainless steel bolt heads on the fender support show plate bolted in underneath step all the way thru and bolted to the trailers frame

  • Media owner Will-C
  • Date added Apr 10, 2011
  • Reaction score 0
  • Comments 0

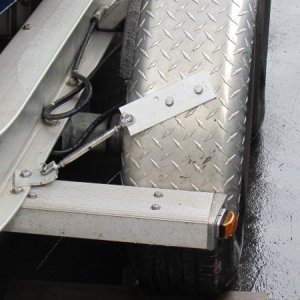

fender support with brace installed

fender support with brace installed

  • Media owner Will-C
  • Date added Apr 10, 2011
  • Reaction score 0
  • Comments 0

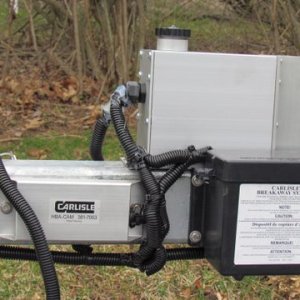

A closer picture of the new 1600PSI electric over hydraulic brake actuator with the Carlisle HBA Cam adapter which is recommended to make the controller think it's still controlling electric brakes rather than hydraulic brakes. Cam stands for Control Adapter Module

A closer picture of the new 1600PSI electric over hydraulic brake actuator with the Carlisle HBA Cam adapter which is recommended to make the controller think it's still controlling electric brakes rather than hydraulic brakes. Cam stands for Control Adapter Module

  • Media owner Will-C
  • Date added Apr 10, 2011
  • Reaction score 0
  • Comments 0
W

P1000486 Some scrap 3 x 4" aluminum angle 1/2" stainless u-bolt 35 dollar stainless turnbuckle, short piece of chain, and a shackle.
