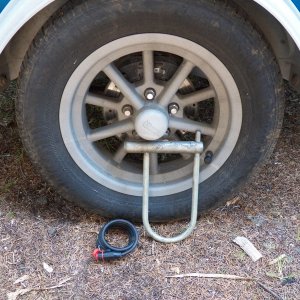

The new 15" tires had to be really skinny to fit the original fenders. These aluminum "gasser" wheels fit the bill and are rough cast so the look fine after saltwater dunks. I lock them to the springs if the trailer is left in an unsecured area.

The new 15" tires had to be really skinny to fit the original fenders. These aluminum "gasser" wheels fit the bill and are rough cast so the look fine after saltwater dunks. I lock them to the springs if the trailer is left in an unsecured area.

  • Reaction score 0
  • Comments 0

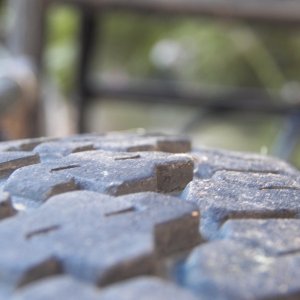

Here is a close-up of the uneven wear on the 13 inch special "trailer tire" with about 2,500 miles on it. My new all season High Load tires have over 6,000 miles and show no wear.

Here is a close-up of the uneven wear on the 13 inch special "trailer tire" with about 2,500 miles on it. My new all season High Load tires have over 6,000 miles and show no wear.

  • Reaction score 0
  • Comments 0

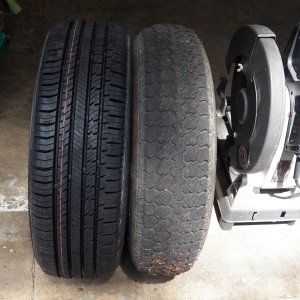

My "new" 13" tire next to my new 15" tire. The 13" tire has about 2,500 miles on it and the left hand outer tread has worn below the siping (and I just rotated them for that reason). Looking at the top profile, both shoulders are wearing faster than the center despite maximum pressure (50 psi).

My "new" 13" tire next to my new 15" tire. The 13" tire has about 2,500 miles on it and the left hand outer tread has worn below the siping (and I just rotated them for that reason). Looking at the top profile, both shoulders are wearing faster than the center despite maximum pressure (50 psi).

  • Reaction score 0
  • Comments 0
Bottom mount fabricated from rectangle tube.

Bottom mount fabricated from rectangle tube.

  • Reaction score 0
  • Comments 0
Top mount fabricated from angle iron.

Top mount fabricated from angle iron.

  • Reaction score 0
  • Comments 0

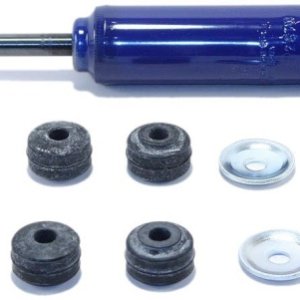

Then I added these. They are little nitrogen gas filled shocks, I think the littlest ones made by Monroe. The stroke is only 4 inches.

Then I added these. They are little nitrogen gas filled shocks, I think the littlest ones made by Monroe. The stroke is only 4 inches.

  • Reaction score 0
  • Comments 0

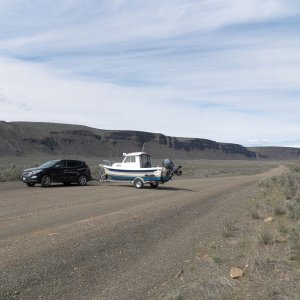

I now have more than 2K miles on the trailer, some on steep gravel roads, and I have never felt the trailer push on me when stopping. I can hardly even tell that it's there. Except the bouncing on roads like this.

I now have more than 2K miles on the trailer, some on steep gravel roads, and I have never felt the trailer push on me when stopping. I can hardly even tell that it's there. Except the bouncing on roads like this.

  • Reaction score 0
  • Comments 0

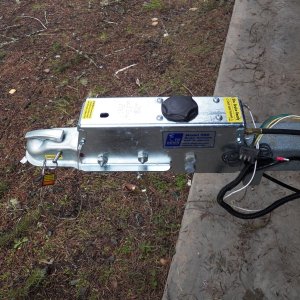

New disc brake actuator. I had to drill new holes because the tongue was shortened. The wiring is still 4-prong and the reverse lockout solenoid wire has no place to connect until I replace the socket with a 7-pin.

New disc brake actuator. I had to drill new holes because the tongue was shortened. The wiring is still 4-prong and the reverse lockout solenoid wire has no place to connect until I replace the socket with a 7-pin.

  • Reaction score 0
  • Comments 0
Here is the basic cost of adding stainless disc brakes to a little trailer. Not cheap, but the initial trial was really, really impressive.

Here is the basic cost of adding stainless disc brakes to a little trailer. Not cheap, but the initial trial was really, really impressive.

  • Reaction score 0
  • Comments 0
This is the spot where I thought I needed to move the second U-bolt in order for the tongue weight would be 230#. I stopped an inch short of my guesstimate for a tongue weight of 228#. Just lucky (assuming I'm right on my total weight estimate). UPDATE: Trailer axle weight is 2200# with full gas, water, etc.

This is the spot where I thought I needed to move the second U-bolt in order for the tongue weight would be 230#. I stopped an inch short of my guesstimate for a tongue weight of 228#. Just lucky (assuming I'm right on my total weight estimate). UPDATE: Trailer axle weight is 2200# with full gas, water, etc.

  • Reaction score 0
  • Comments 0
Here is the fender back on. You can see that I moved the axle forward about 6 inches because the batteries and gas tank have been moved forward in the boat. Prior tongue weight was 310#. New tongue weight is 228#. Estimated trailer weight is 1,900#, so the tongue weight is 12%. I won't know until I get to a scale.

Here is the fender back on. You can see that I moved the axle forward about 6 inches because the batteries and gas tank have been moved forward in the boat. Prior tongue weight was 310#. New tongue weight is 228#. Estimated trailer weight is 1,900#, so the tongue weight is 12%. I won't know until I get to a scale.

  • Reaction score 0
  • Comments 0

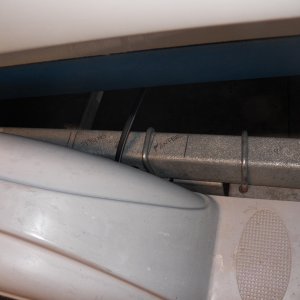

Very tight fit. I had to bend some little stainless clips because they were interfering with the wheels. I learned after reassembling that rusty leaf springs make for a rough ride because of "stiction." Pulling them off (using an air wrench), sandblasting, and painting isn't too complicated and I may do that.

Very tight fit. I had to bend some little stainless clips because they were interfering with the wheels. I learned after reassembling that rusty leaf springs make for a rough ride because of "stiction." Pulling them off (using an air wrench), sandblasting, and painting isn't too complicated and I may do that.

  • Reaction score 0
  • Comments 0

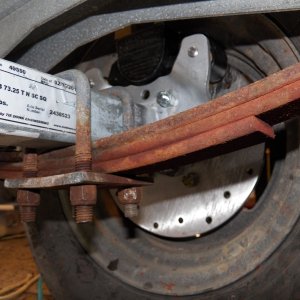

The brakes fit just fine on the 13" wheels and the original fenders have plenty of clearance.

The brakes fit just fine on the 13" wheels and the original fenders have plenty of clearance.

  • Reaction score 0
  • Comments 0

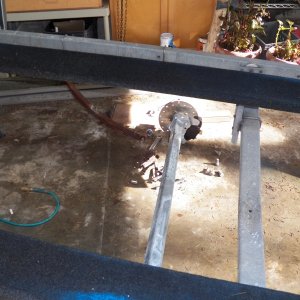

This is the "what have I done?" point. Springs are dropped and the old axle (for V hull) removed. The new straight axle works with a C Dory. The axle had to be drilled to fit the bolts that hold the leaf springs together. Otherwise, it is a straight bolt-on job.

This is the "what have I done?" point. Springs are dropped and the old axle (for V hull) removed. The new straight axle works with a C Dory. The axle had to be drilled to fit the bolts that hold the leaf springs together. Otherwise, it is a straight bolt-on job.

  • Reaction score 0
  • Comments 0

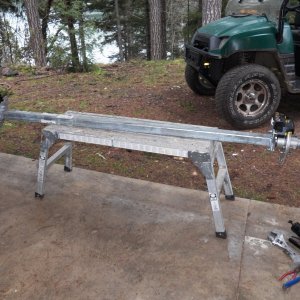

Complete axle ready to attach. Total unsprung axle weight is 138# (with wheels and tires).

Complete axle ready to attach. Total unsprung axle weight is 138# (with wheels and tires).

  • Reaction score 0
  • Comments 0
New axle has a zerk fitting for easy greasing.

New axle has a zerk fitting for easy greasing.

  • Reaction score 0
  • Comments 0
Axle and brakes are the same manufacturer. Simple, perfect fit.

Axle and brakes are the same manufacturer. Simple, perfect fit.

  • Reaction score 0
  • Comments 0
The new axle and brakes. Brakes came three days after ordering. Axle took 2 months. This is a 3.5K# axle, the smallest that comes with brake flanges. I didn't need 3.5K# for a CD 16, but I did need the brake flanges. Turns out that getting a new axle is the simplest way.

The new axle and brakes. Brakes came three days after ordering. Axle took 2 months. This is a 3.5K# axle, the smallest that comes with brake flanges. I didn't need 3.5K# for a CD 16, but I did need the brake flanges. Turns out that getting a new axle is the simplest way.

  • Reaction score 0
  • Comments 0
The first thing that I did was remove the old hitch and shorten the tongue. The new disc brake actuator was 6 inches longer than the original hitch and I thought the tongue was already too long.

The first thing that I did was remove the old hitch and shorten the tongue. The new disc brake actuator was 6 inches longer than the original hitch and I thought the tongue was already too long.

  • Reaction score 0
  • Comments 0
M

The first thing that I did was remove the old hitch and shorten the tongue. The new disc brake actuator was 6 inches longer than the original hitch and I thought the tongue was already too long.
