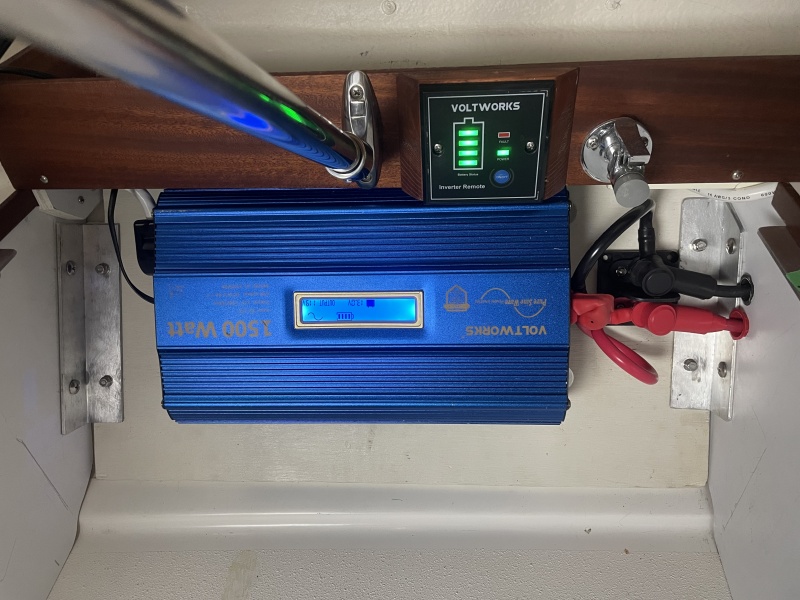

angle aluminum screwed into cabinets and bolted to plywood panel
House Battery 2 connects directly to inverter via buss so short run reduces resistance as the big battery?s main job is 110v AC and backup for House Battery 1 if needed.

used the marine grade cable as it was very flexible for the long run from the port transom to the starboard cabin location

can now make coffee, run the dehumidifier and charge usb items in cabin

$didn\'t want to combine with primary pump or make new thru hull so I ran the hose through to transom via the engine control boot$

panel for mounting inverter without drilling into outer hull

$the battery weighs 135 lbs and can be shifted 10\" towards midship to help trim when single handing... then moved starboard with passngers. Eventually, if needed I can add a second there in parallel for mucho amp hours$

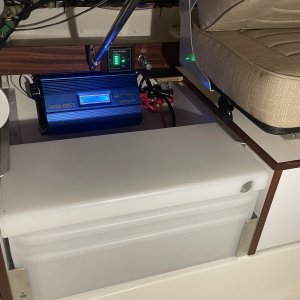

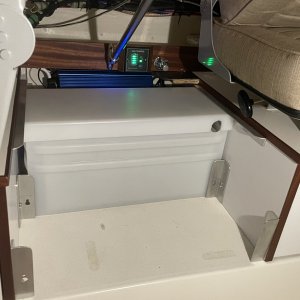

the large group D battery fit perfectly between the two storage areas. The angle aluminum at the top edge holds it down firmly and the movable angle brackets allow the lateral movement

angle aluminum screwed into cabinets and bolted to plywood panel House Battery 2 connects directly to inverter via buss so short run reduces resistance as the big battery?s main job is 110v AC and backup for House Battery 1 if needed.

multimediasmith
Jun 27, 2025

There are no comments to display.

Media information

Category: MARINAUT- ADD ELECTRICS

Album: the boat came with ZERO electrical 110V AC (no coffee or cooking) I was able to avoid drilling any new holes in the Transom... yes!
