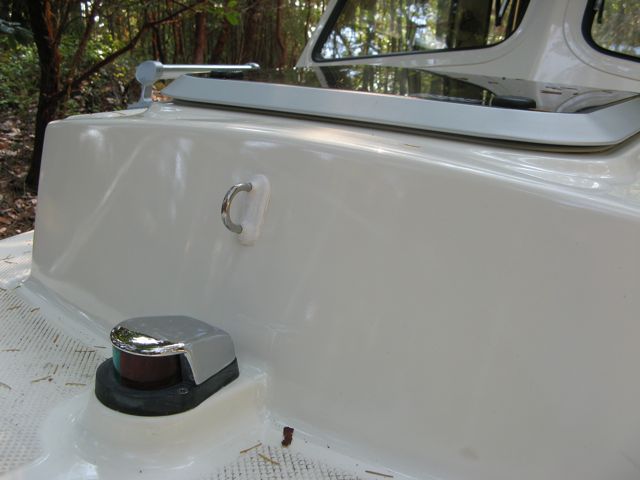

Bow eye installed to provide attachment point for bitter end of anchor line.
Next
Prev
Installation for Standard Horizon HX471 handheld VHF with DSC. Cradle keeps radio close to my ear, connects to GPS for positioning and can be plugged in for charging at any time.
Instrument console: Ritchie Explorer compass, Garmin 545s GPS sounder, tach/ hour, tilt meter, horn button, intermittent wiper button, various electrical switches, 12 volt outlet facing downward under switch panel.
Cushion in place on berth extension. Very comfy! Width is approx 39" (single bed size) across extended section. Length about 7 feet.
Bow eye installed to provide attachment point for bitter end of anchor line.
Vent visor installed on sliding windows-- cut down from generic car visor (a Bronco model, I think). $40 for a pair.
View upwards with hatch open-- hinges on aft side.
Overhead hatch with screen-- storage shelf forward. Red LED strip (less harsh for night use) installed to interior light circuit and OEM interior light moved forward (uses switch on light casing).
Next
M

Bow eye installed to provide attachment point for bitter end of anchor line.

  • Media owner marco422
  • Date added
Bow eye installed to provide attachment point for bitter end of anchor line.
Click to expand...
There are no comments to display.

Media information

Category
Mods
Album
Anchor retainer using quick release pin to allow removal of anchor line from bow roller. Neoprene pad prevents scratches.
