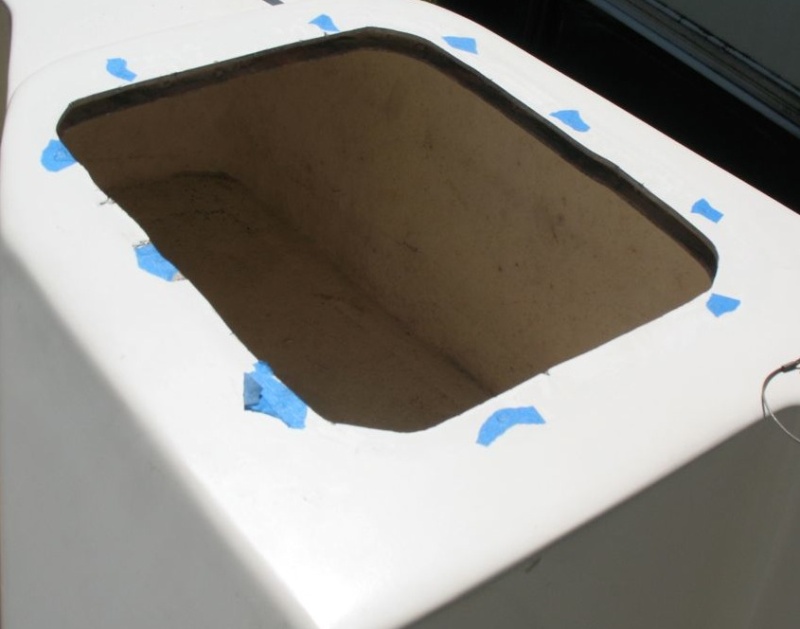

Cleaned out, prepping for next steps.
Next
Prev
Lid restraint. I made these by putting snaps in each end of a section of tubular webbing. The strap is removable by un-snapping it, and/or a different length strap could be made up.
Battery tray holes over-drilled to be filled with thickened epoxy (not re-using this fastening method for batteries). Also edges of locker bottom (which were raw balsa) were removed and filled with thickened epoxy.
Fiberglass backing plate added to cleat. First, core removed around fastener perimeters, then re-filled with thickened epoxy (hole in deck not enlarged; work done from below). Next, backing plate set in place with "mush" of thickened epoxy. Then holes redrilled through all and cleats re-bedded with butyl tape and re-fastened with new, 316 stainless fasteners.
Cleaned out, prepping for next steps.
Underside, un-annotated (easier to see).
Sketch of the plan for new lower skin, also showing new upper skin already in place.
Sketch of the plan for new upper layer.
Next
S

Cleaned out, prepping for next steps.

  • Media owner Sunbeam
  • Date added
Cleaned out, prepping for next steps.
Click to expand...
There are no comments to display.

Media information

Category
Lazarettes
Album
Removing perimeter balsa core, to be replaced with thickened epoxy.
