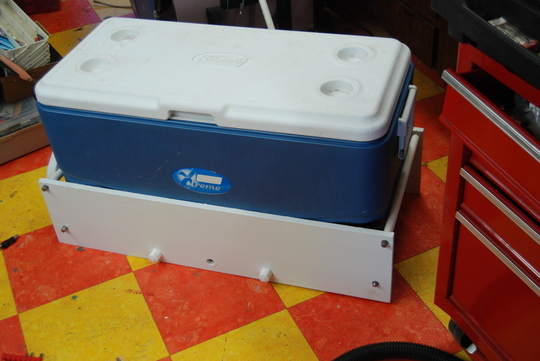

COOLER RACK
Fits my Coleman Extreme Roller Cooler perfectly. Top 2 rods hold cooler tightly. Middle 2 rods rest on top of platform to position bottom 2 at correct hieght to bolt through the rungs.

COOLER RACK
Fits my Coleman Extreme Roller Cooler perfectly. Top 2 rods hold cooler tightly. Middle 2 rods rest on top of platform to position bottom 2 at correct hieght to bolt through the rungs.

Cooler holder for rack.
Used 2 36" x 1/4 brass threaded rodsfrom H.D. (each cut in half to make 4. Used 1/4 SS cap nuts on front 1/4 ss nylock nuts on back.
Used 1/2" sced. 40 PVC as top seperator.
Drilled a couple 7/8" holes in the bottom and used 18"x1/2 threaded PVC risers with twist on caps (spaced and located so they can be placed through any 2 rungs on the ladder/rack, so that cooler can be placed anywhere on rack to maximize boat balance and or rear view. I used 7/8" wood (just because I had it) 1/2" starboard would likely be more durable but this will last a long time. May need to notch for the spring latch so that it can fit far left.

Finished platform with spring locks and black starboard insert table

Plan to add quick attach for large cooler

close up of quick latch easy on-off

Stainless quick latches ($10ea e-trailer) A really nice marine latch

BASE PLATFORM

Close-up Cleat hole

C

COOLER RACK Fits my Coleman Extreme Roller Cooler perfectly. Top 2 rods hold cooler tightly. Middle 2 rods rest on top of platform to position bottom 2 at correct hieght to bolt through the rungs.
