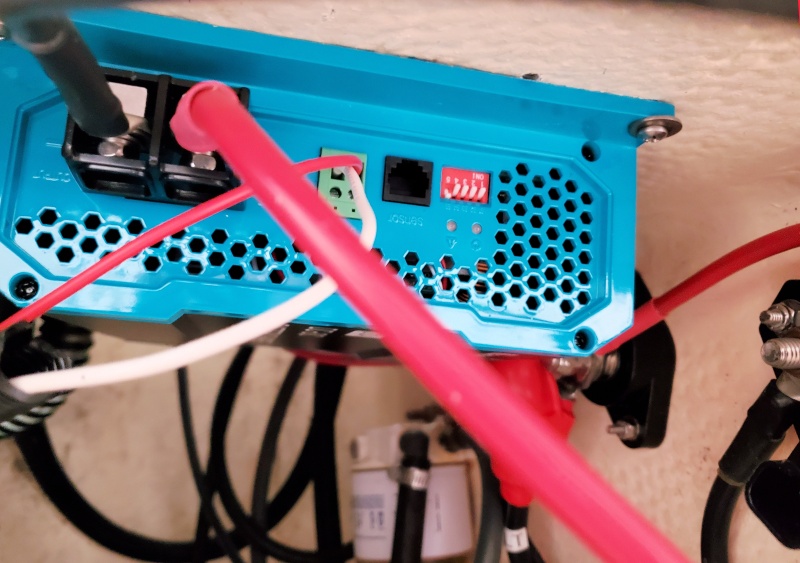

DC-DC charger, installed upside down. Showing the 2 ea. control wires. 1 for charging and 1 for 1/2 rate
Next
Prev
Close up of battery switch and negative bus. Finally labeled wires. Took a day.
Close up of Balmar battery monitor (fore) and positive tie terminal (aft. Alternator feeds the terminal
Close up of the battery. Size 31. Contains internal BMS. Notice all the wires going to the pos terminal. Tried to reduce them but no luck.
DC-DC charger, installed upside down. Showing the 2 ea. control wires. 1 for charging and 1 for 1/2 rate
Control panel, showing the 2 control switches, 1/2 rate charging of ~8 amps and Li battery voltage
Here's what we're replacing: 2 ea golph cart batteries, 70 lbs. ea
