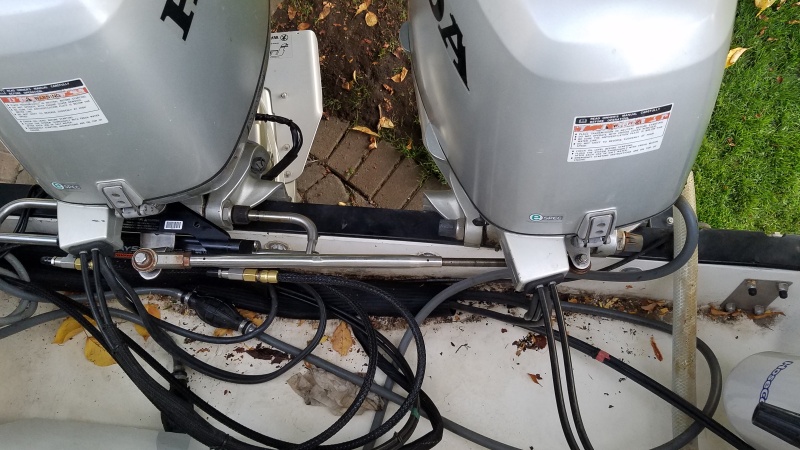

Existing tie bar repurposed from mechanical steering system. STBD engine was temporarily lifted for clearance and the mechanical steering cut for removal.
Next
Prev
Close-up image of ram clearance. Either and/or both engines tilt without interference.
Existing tie bar repurposed from mechanical steering system. STBD engine was temporarily lifted for clearance and the mechanical steering cut for removal.
Baystar ram bracket bolted to steering prior to installing on outboard frame.
Master 2003 Honda BF503 steering bracket mock-up. Second bracket not needed for slave (PORT) engine.
Master 2003 Honda BF503 steering bracket for Baystar HC4645-3 ram and HH4315-3 tilt helm
