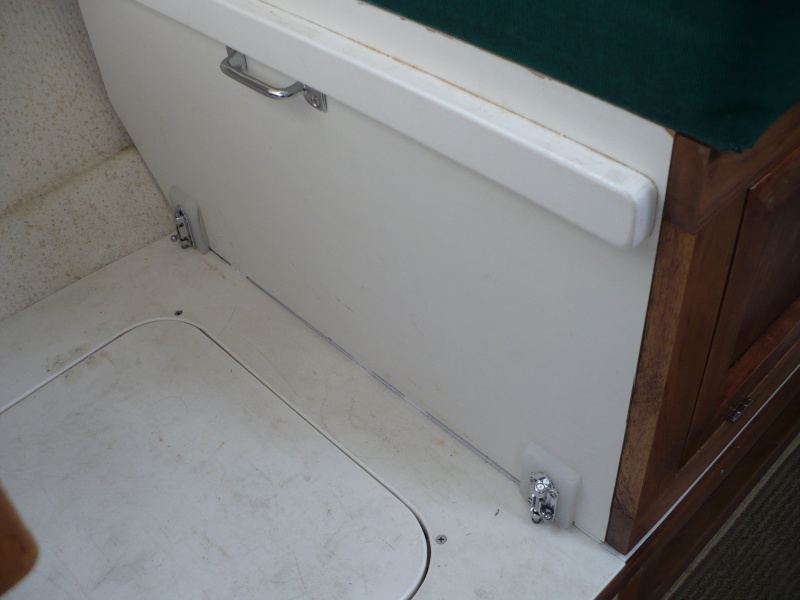

Handle for moving the box. It slides very easy on the plastic rails.
Next
Prev
A hole was drilled thru the "L" bracket and a bolt with knob is used to hold things in place. This single bolt is really just a pin and is held in place by Velcro. It keeps everything in place very snug when the table is up folded down as pictured.
Sliding seat in new position. A lumbar pillow is nice to use here. We often sit on a PFD cushion for a better look-out/view. Not pictured here, I added a snap under the table and a small strap snaps into it and then snaps onto the existing cushion snap. This hold the back-rest cushion in place.
I started to build a drawer but did not like the loss of storage space. There is a lot of space in here. The base panel sits inside on little feet that raises it up above the T-Track.
Handle for moving the box. It slides very easy on the plastic rails.
These are Sea Dog slide bolts that hold the box in position. 2 holes drilled in floor.
Most of the seat was recycled from the original seat box. Front, side and bottom panels were added along with the floor/deck. All painted to match.
The Plastic "T" (made from cutting board) bolts down to/thru the floor. This keeps the seat box attached to the boat. Slide bolts hold the box in position, forward/aft side to side. A wood tray/cap goes over the "T", so it does not get in the way of gear storage. Or, if there is a drawer, the drawer will glide over the it. This system workes really well and is very simple to build.
Next
M

Handle for moving the box. It slides very easy on the plastic rails.

Handle for moving the box. It slides very easy on the plastic rails.
Click to expand...
There are no comments to display.

Media information

Category
Grace - Forward Facing Seat conversion on a 22
Album
Sliding seat in new position. A lumbar pillow is nice to use here. We often sit on a PFD cushion for a better look-out/view. Not pictured here, I added a snap under the table and a small strap snaps into it and then snaps onto the existing cushion snap. This hold the back-rest cushion in place.
