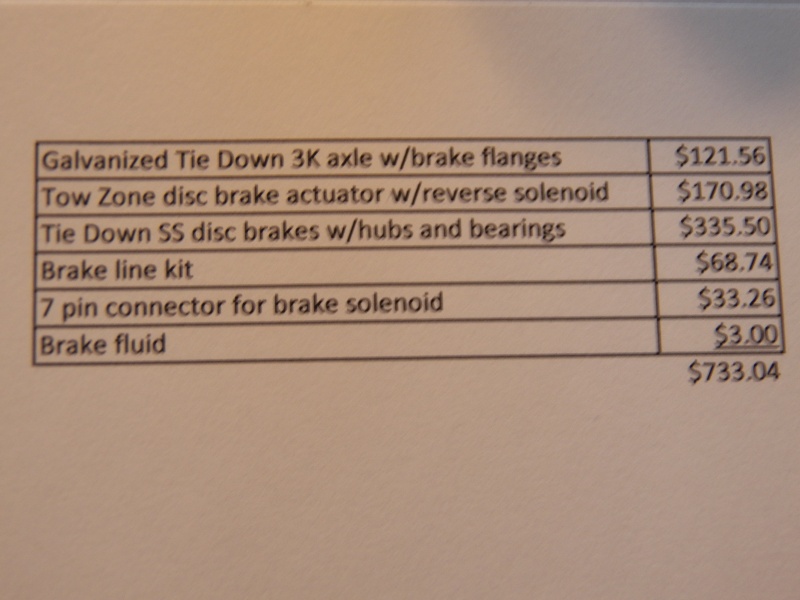

Here is the basic cost of adding stainless disc brakes to a little trailer. Not cheap, but the initial trial was really, really impressive.
Next
Prev
Then I added these. They are little nitrogen gas filled shocks, I think the littlest ones made by Monroe. The stroke is only 4 inches.
I now have more than 2K miles on the trailer, some on steep gravel roads, and I have never felt the trailer push on me when stopping. I can hardly even tell that it's there. Except the bouncing on roads like this.
New disc brake actuator. I had to drill new holes because the tongue was shortened. The wiring is still 4-prong and the reverse lockout solenoid wire has no place to connect until I replace the socket with a 7-pin.
Here is the basic cost of adding stainless disc brakes to a little trailer. Not cheap, but the initial trial was really, really impressive.
This is the spot where I thought I needed to move the second U-bolt in order for the tongue weight would be 230#. I stopped an inch short of my guesstimate for a tongue weight of 228#. Just lucky (assuming I'm right on my total weight estimate). UPDATE: Trailer axle weight is 2200# with full gas, water, etc.
Here is the fender back on. You can see that I moved the axle forward about 6 inches because the batteries and gas tank have been moved forward in the boat. Prior tongue weight was 310#. New tongue weight is 228#. Estimated trailer weight is 1,900#, so the tongue weight is 12%. I won't know until I get to a scale.
Very tight fit. I had to bend some little stainless clips because they were interfering with the wheels. I learned after reassembling that rusty leaf springs make for a rough ride because of "stiction." Pulling them off (using an air wrench), sandblasting, and painting isn't too complicated and I may do that.
Next
M

Here is the basic cost of adding stainless disc brakes to a little trailer. Not cheap, but the initial trial was really, really impressive.

Here is the basic cost of adding stainless disc brakes to a little trailer. Not cheap, but the initial trial was really, really impressive.
Click to expand...
There are no comments to display.

Media information

Category
Trailer modifications
Album
The first thing that I did was remove the old hitch and shorten the tongue. The new disc brake actuator was 6 inches longer than the original hitch and I thought the tongue was already too long.
