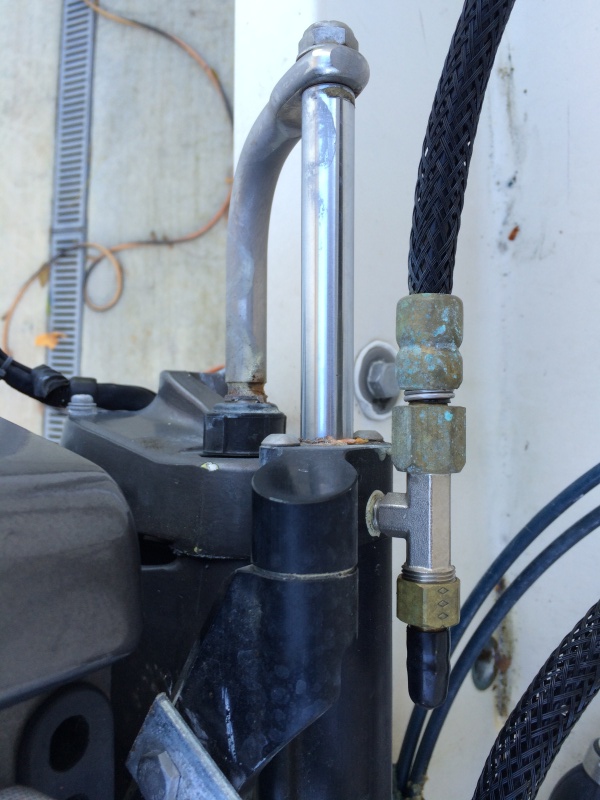

Hydraulic line from DC pump enters the port side of hydraulic piston.
Next
Prev
Hydraulic line from DC pump enters the port side of hydraulic piston.
Hydraulic piston mounted on Nisson.
Rear view of helm pump and hydraulic line going to DC pump.
12V DC motor, controlled by autopilot computer, drives hydraulic piston mounted on Nisson. Two lower hoses go to helm pump for manual control of Nisson.
View of Hydraulic piston with port and starboard hydraulic lines entering piston. The V shaped strips provide mount for interconnecting tube to the Yamaha.

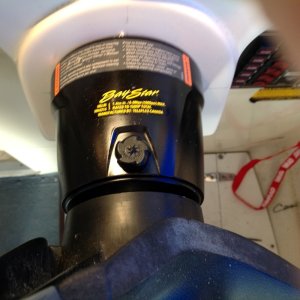

Helm pump for hydraulic steering
