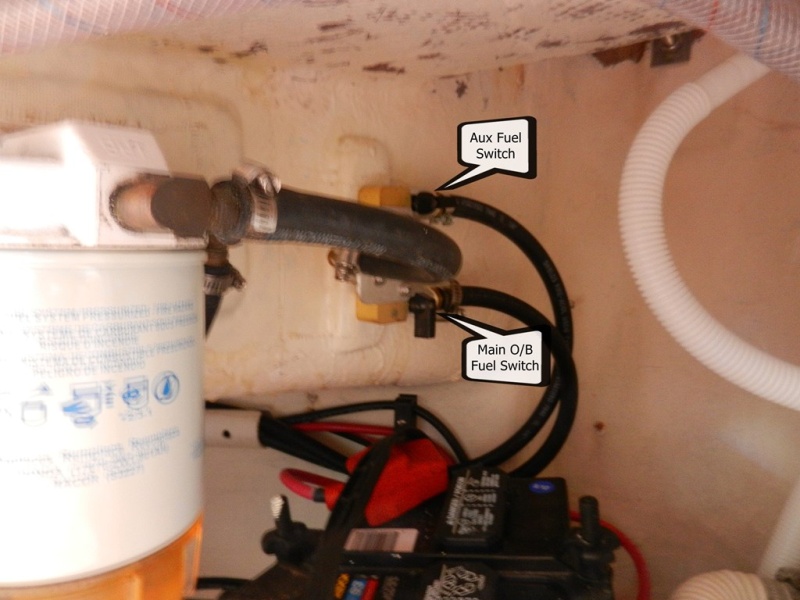

I split the output of the Racor into a Y-fitting and put two valves on the outputs, one for the main engine, and one for the auxiliary port.
Next
Prev
Here it is in use, refilling the dinghy outboard\'s internal tank. Can also use it to fill the Honda EU generator easily!
I split the output of the Racor into a Y-fitting and put two valves on the outputs, one for the main engine, and one for the auxiliary port.
Then I made up a short hose with a primer bulb on it to pump the gas.
I bought the mating connector with a hose barb.
Here is what the Honda fitting looks like without the cap.
Here is the backside. I used a bulkhead fitting with 1/4" threads on both ends inside the outer threaded fitting. The fitting came from http://www.mcmastercarr.com
Close up of port. I used a Honda outboard connector with 1/4" threads. The cap is a plastic/rubber thing I had that just happened to fit. It will surely degrade quickly and I'll have to find something else.
Next
R

I split the output of the Racor into a Y-fitting and put two valves on the outputs, one for the main engine, and one for the auxiliary port.

  • Media owner Ray
  • Date added
I split the output of the Racor into a Y-fitting and put two valves on the outputs, one for the main engine, and one for the auxiliary port.
