Here is the awning tied up at the top of the bow rail all the way around.
Three eyenuts were installed. One middle and two outer.
A 1/2" SS carriage bolt, e.g., http://www.mcmaster.com/#93180a208/=pbow9t and a matching eye nut, e.g., http://www.reddenmarine.com/sea-dog-078106-stainless-steel-eye-nut-1- 4.html were used. I cut a square hole in the fiberglass to match the carriage bolt shoulder.

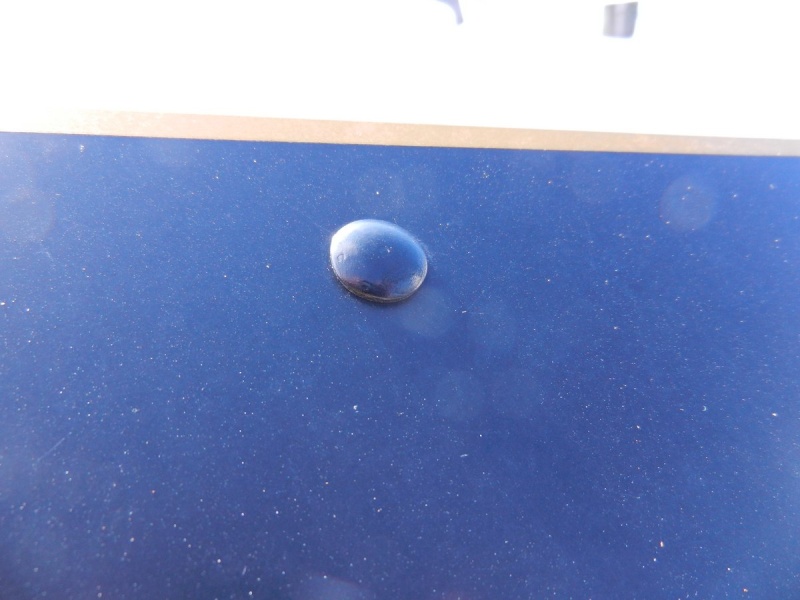

I used gloss black enamel on the bolt heads after sanding them a bit first.
Awning was a basic square (I'll update side dimensions when I get back down to the boat). Sides were cut with a curve to stretch tight when corners were pulled. We used some leftover "Oyster" Sunbrella fabric.
