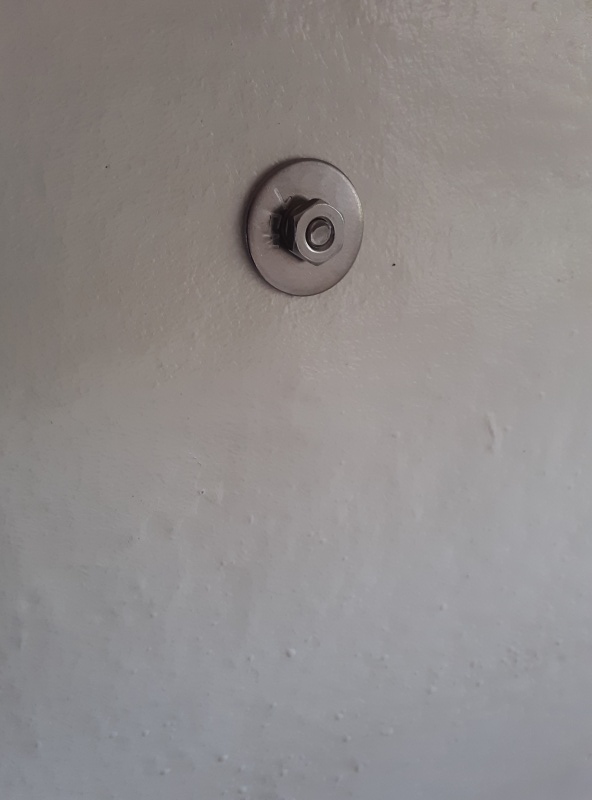

inside. I\'m not going to paint it or anything. seeing the fasteners doesn\'t bother me. I did use an acorn nut in a couple spots where I was worried about wires or cables rubbing on the end of the machine screw
Next
Prev
Josie and Logan putting in the rubber strip
inside the vberth
extrusion bolted on
inside. I\'m not going to paint it or anything. seeing the fasteners doesn\'t bother me. I did use an acorn nut in a couple spots where I was worried about wires or cables rubbing on the end of the machine screw
1-1/4 10-32 machine screws worked well for all but a few where the glass was thicker. I used the rubber sealing washer to isolate the ss from the alum. on the inside I used fender washer, lock washer, and nut
I cut little squares from a roll of butyl tape to put where the fasteners go. I was originally going to roll the butyl tape but I felt this would work better. I dont want any water trapped in the rub rail, and I thought that this would allow it to drain. I also am not going to caulk the top or bottom of the rain after its all tightened up.

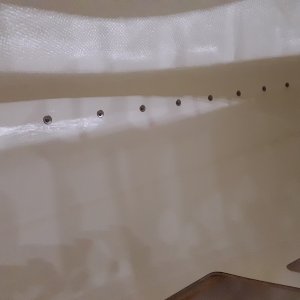

I started drilling holes at the back of the boat and worked my way to the front. the back has the sharp bend, so I wanted to make sure that it fit good around the bend
Next
C

inside. I\'m not going to paint it or anything. seeing the fasteners doesn\'t bother me. I did use an acorn nut in a couple spots where I was worried about wires or cables rubbing on the end of the machine screw

inside. I\'m not going to paint it or anything. seeing the fasteners doesn\'t bother me. I did use an acorn nut in a couple spots where I was worried about wires or cables rubbing on the end of the machine screw
Click to expand...
There are no comments to display.

Media information

Category
Rub rail repair
Album
a heat gun helps get it started
