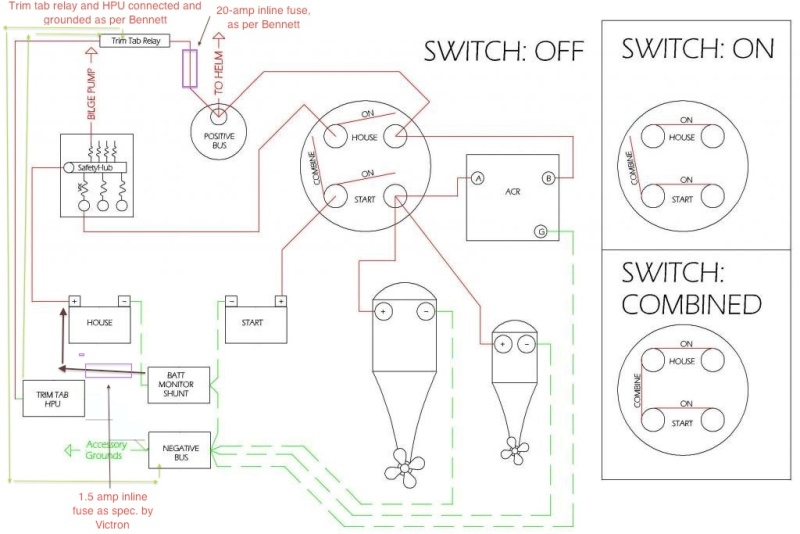

Almost current version of my electrical system in the starboard lazarette (next drawing has corrected slight mistake with the way the start ground wire was drawn). Thanks to AK Angler for the drawing. (I'm leaving all of the iterations in the album since they are referred to in various posts and I don't want to break the links.) Note that the negative buss is not shown because it adds clutter to the drawing.
My electrical system 10-2013 AK Angler, annotated 5
My electrical system 10-2013 AK Angler, annotated 4
My electrical system 10-2013 AK Angler, annotated 2
My electrical system 10-2013 AK Angler, annotated
