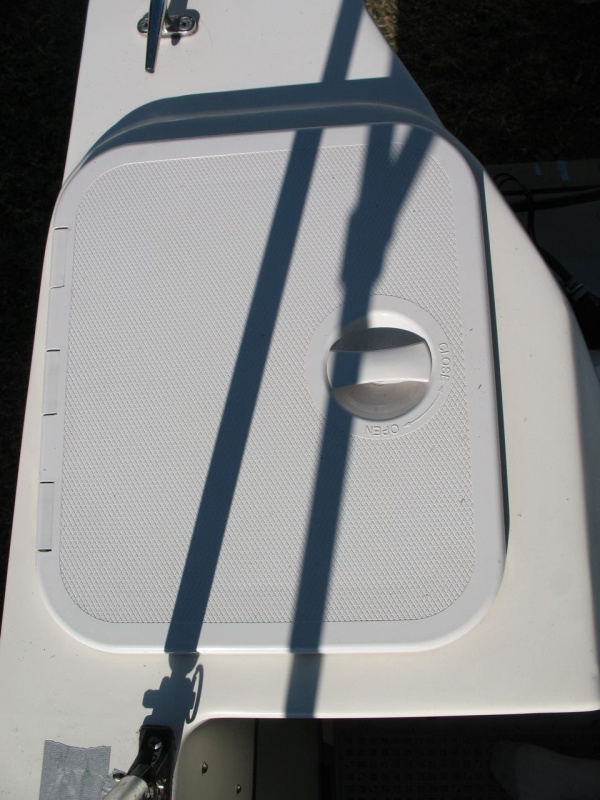

New hatch, overview. Key was to not have the hatch overlap the deck "boss" on either after corner.
Next
Prev
Sketch of the plan for new lower skin, also showing new upper skin already in place.
Sketch of the plan for new upper layer.
Detail showing placement in relationship to deck boss. Note for determining placement: Hatch with lid is asymmetrically different than hatch rim alone.
New hatch, overview. Key was to not have the hatch overlap the deck "boss" on either after corner.
Underside, annotated.
New opening getting closer to done. Circles show relationship of (some of the) new holes to the opening.
New upper skin with fairing compound applied but not yet sanded.
