panel for mounting inverter without drilling into outer hull
Next
Prev
can now make coffee, run the dehumidifier and charge usb items in cabin
didn\'t want to combine with primary pump or make new thru hull so I ran the hose through to transom via the engine control boot
angle aluminum screwed into cabinets and bolted to plywood panel House Battery 2 connects directly to inverter via buss so short run reduces resistance as the big battery?s main job is 110v AC and backup for House Battery 1 if needed.
panel for mounting inverter without drilling into outer hull
the battery weighs 135 lbs and can be shifted 10\" towards midship to help trim when single handing... then moved starboard with passngers. Eventually, if needed I can add a second there in parallel for mucho amp hours
the large group D battery fit perfectly between the two storage areas. The angle aluminum at the top edge holds it down firmly and the movable angle brackets allow the lateral movement
wanted the large battery close to the inverter to reduce resistance and power loss
Next
multimediasmith

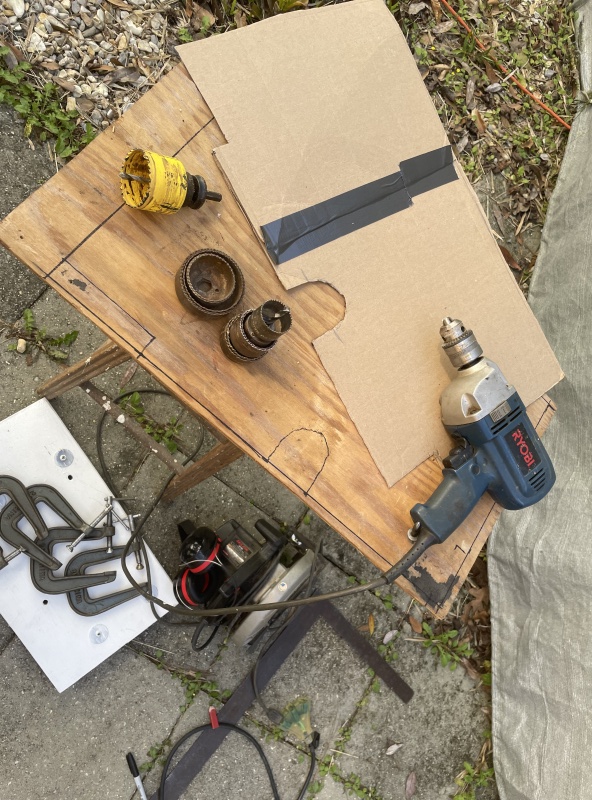

panel for mounting inverter without drilling into outer hull

panel for mounting inverter without drilling into outer hull
Click to expand...
There are no comments to display.

Media information

Category
MARINAUT- ADD ELECTRICS
Album
the boat came with ZERO electrical 110V AC (no coffee or cooking) I was able to avoid drilling any new holes in the Transom... yes!
