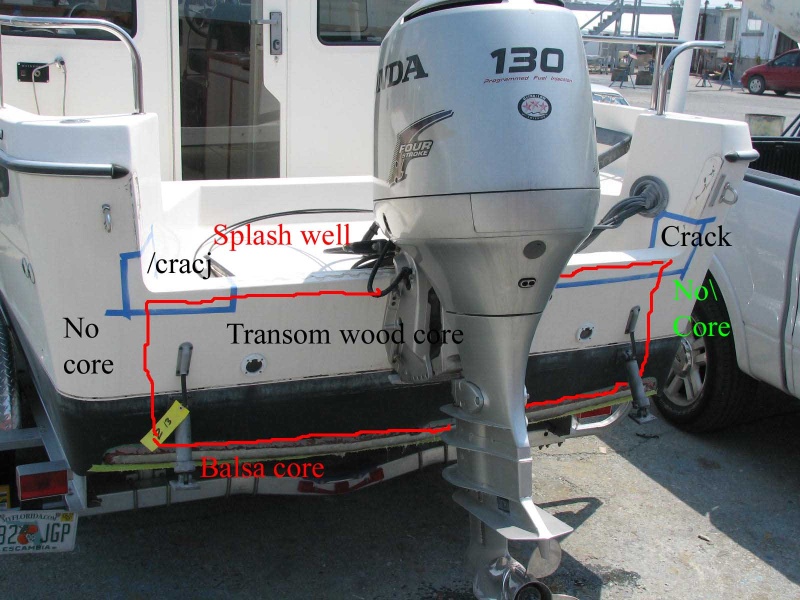

Photo outlining the part of the transom backed with wood. Cracks in to the splash well area from the top of the transom. Areas or repair deliniated in masking tape.
Next
Prev
Port side aft after buff and wax
Port side foreward after buff and wax
Transom, with wood core deliniated where the fiberglass bulges, between the bottom of the boat and under the deck
Photo outlining the part of the transom backed with wood. Cracks in to the splash well area from the top of the transom. Areas or repair deliniated in masking tape.
annotated void in the core at the transom. This core in the bottom of the boat should be separated from the transom core by at least a layer of glass and should extend to the extreme end of the boat, so there is no voids, where water can trap. The solution is to fill this gap with solid glass.
annotatred photo of transom. Note the layers of gel coat, both green and white which were under the filler. The filler is the only item which crosses the entire transom, no glass in this layer, so it is susceptable to cracks.
sketch of transom
Next
T

Photo outlining the part of the transom backed with wood. Cracks in to the splash well area from the top of the transom. Areas or repair deliniated in masking tape.

  • Media owner thataway
  • Date added
Photo outlining the part of the transom backed with wood. Cracks in to the splash well area from the top of the transom. Areas or repair deliniated in masking tape.
