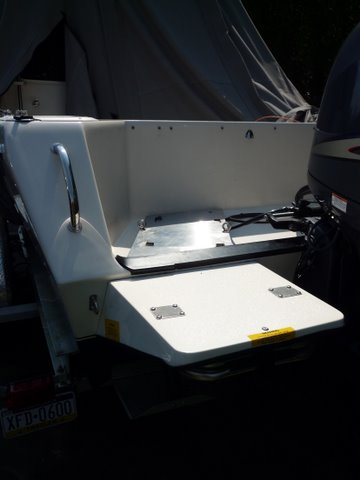

plate installed on existing swim platform bolts, small angles welded to prevent generator from sliding around. will make wood or starboard plate with anti skid to go on plate when generator is not in use.Will also double use as a bait board. Pic's later. Just using generator at anchor stays in cockpit while underway.
Next
Prev
exhaust out the back, motor well to keep noise and fumes at a mimimum,boat should swing into the wind. Summer in New Jersey it's nice to close up the boat and run air conditioning to sleep cool with out the flying critters climbing in bed with you.
drilled hole on vertical side of plate for drain hole to match up with boats motor well scupper. Getting the correct angle was a pain to get plate to sit level while getting tight to the transom. When the boat is in the water and loaded the plate seems to be parallel with the water
Generator with northeast style theft deterrents installed. Boy this is starting to look like an over kill. Chain will get canvas cover except for the ends
plate installed on existing swim platform bolts, small angles welded to prevent generator from sliding around. will make wood or starboard plate with anti skid to go on plate when generator is not in use.Will also double use as a bait board. Pic's later. Just using generator at anchor stays in cockpit while underway.
Drilled out shackle to fit a trailer pin lock, chain slips onto shackle pin lock goes thru a welded eye mounted to the stainless steel plate
trailer hitch lock used to lock chain to plate via stainles shackle. Standard shackle bored out to except pin lock
bracket uses existing swim bracket bolts to mount,front sits on a strip of teak not bolts to the the boat ,1/4 thick stainless loops on either side have welded bolts the loops used for locking the generator in place to keep it out of the cabin should we leave the boat.
