Seat appeared to be intended to be mounted on a sloping back surface. I used some 3/4 ply and some wedge blocks to tilt the seat back to a comfortable angle.
Next
Prev
Teleflex recessed wedge hole.
Teleflex recessed wedge installation. Cut out was *JUST* enough
New wheel clearance with Teleflex wedge and new helm seat
Seat appeared to be intended to be mounted on a sloping back surface. I used some 3/4 ply and some wedge blocks to tilt the seat back to a comfortable angle.
Clearance at back when rotating

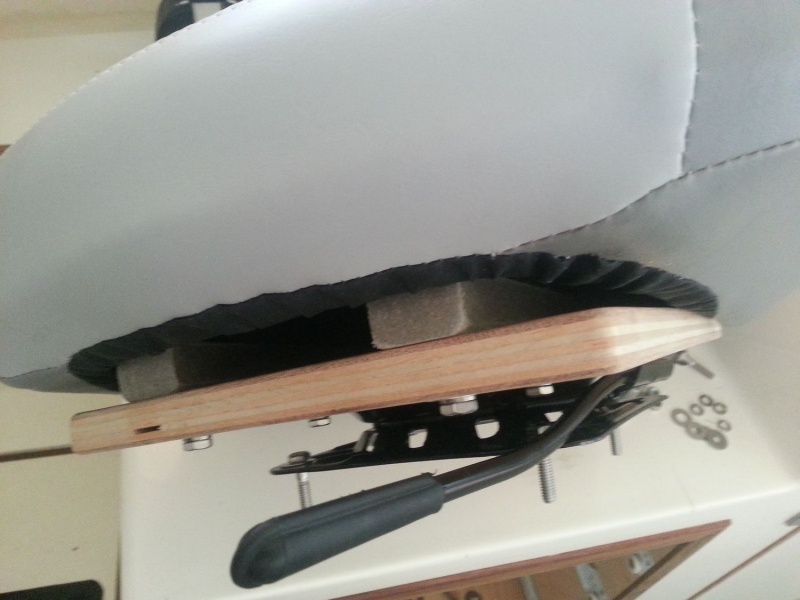

Plain, $19. locking swivel. Used 3/4 ply to get a bit more height and to mount angled blocks to tilt the seat back some.
Clearance when forward facing using factory mounting holes
