Step Three, continued.
Next
Prev
Port Trim Tab repaired and no longer leaks. Total cost of U-seal $5.35, having a trim tab that no longer leaks, priceless!
Step Five, reassemble in reverse order of disassembly.
Step Four, pull out the actuator and remove the top seal. Replace with a U-seal 0.75" x 1.25" x 0.25" 800 PSI. The O-ring was in good shape and did not need replacing.
Step Three, continued.

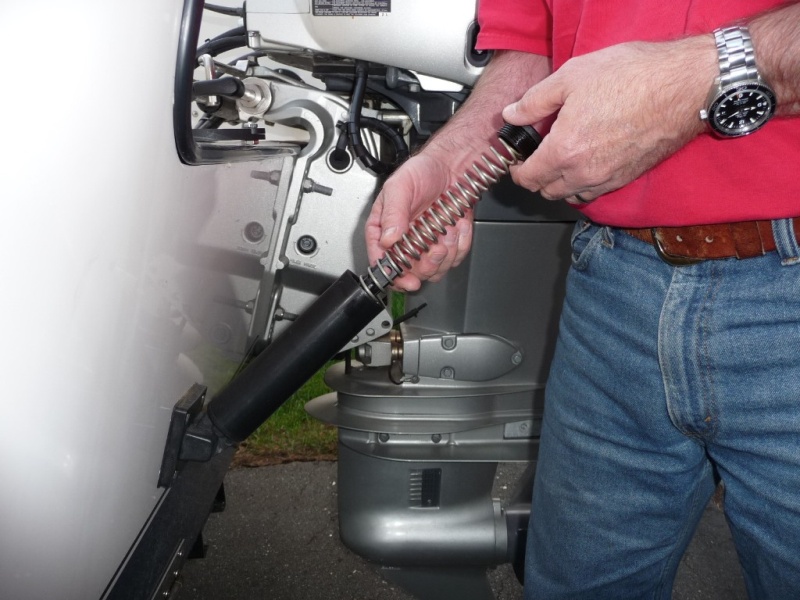

Step Three, remove the end and the spring.
Step Two, unscrew the end.
The tool you need to remove the end.
Next
A

Step Three, continued.

Step Three, continued.
Click to expand...
There are no comments to display.

Media information

Category
Trim Master Actuator Leak Repair
Album
Step One remove the pin.
