So far, every deck penetration that could be done wrong was done wrong. I found that the little snap fittings for the bimini had been pop riveted (and many had failed because of using aluminum with stainless). Those that had been replaced over the years also had leaked. All have now been removed. I only found a couple of bad spots in the balsa core, and those appeared to be discolored rather than rotten. Again, with the balsa core moisture at full saturation, it is difficult to identify exactly what was leaking. I didn't find anything that made me want to tear off the fiberglass laminate (from below) and examine, but then I'm also really reluctant to go there.
I was able to get a moisture reading well away from the leaking deck fittings when I drilled a hole for the gas tank deck fill. This shows that the balsa core is saturated throughout the boat. The wood looks perfect, but it probably would not have lasted long at this moisture content.
It still gets bored out to help dry out the boat and get a protective epoxy coating in the future.

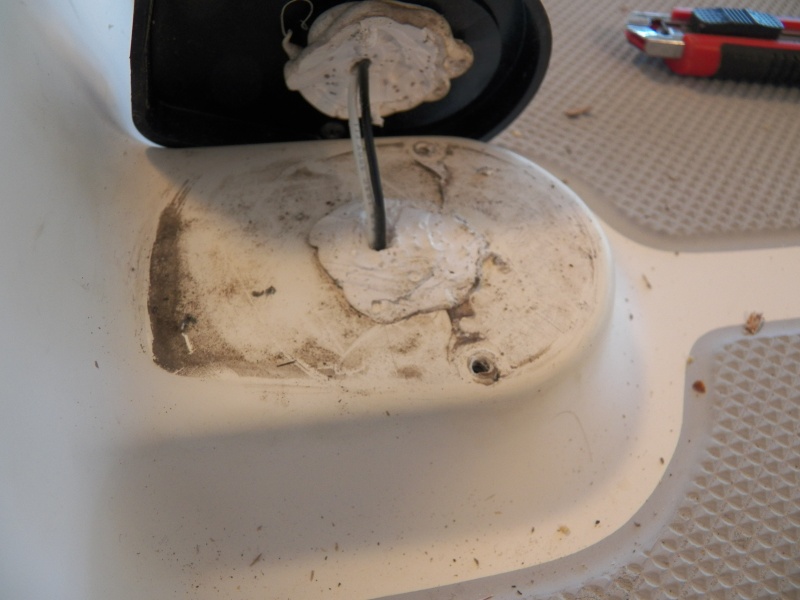

The bow light was okay because of a big gob of caulk.
Here's the deck with most of the hardware removed. Even if the holes were okay (which it was on the anchor roller), I'm going to wait months before filling them in hopes that moisture will escape from all of the openings.
Here was one of the leaks. The cleat was set in silicon bath tub caulk, which can work okay if there is no pressure placed on the fitting. Wait a minute. Oh yeah, it's a cleat. This will have to be bored out and filled with epoxy. I found that a "file card brush" was aggressive enough to remove the caulk and not damage the deck.
I drilled them out oversized so that they could be filled with epoxy putty for a proper deck mounting. The swarf looks good, but it was soaking wet.
Next
M

The bow light was okay because of a big gob of caulk.

The bow light was okay because of a big gob of caulk.
Click to expand...
There are no comments to display.

Media information

Category
Balsa Core Issues
Album
On the original setup, the fuel filter was between the tanks and screwed to the deck. It's now hung temporarily from an outboard bolt (above the bilge pump) and exploratory holes have been drilled to find out the condition of the balsa core where it has been breached to install hold-downs for the various gear.
