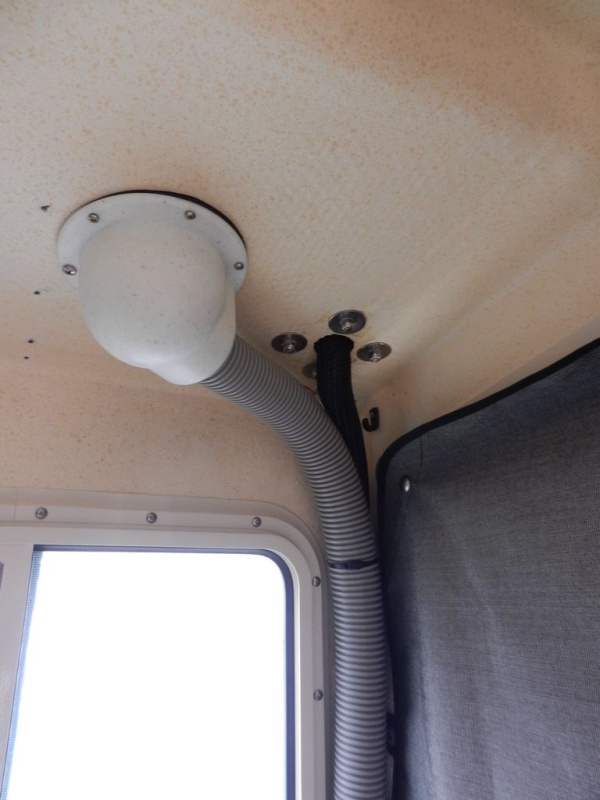

The wiring hole was drilled out and the edges sealed off with epoxy. I wrapped the bundle with some rigid(-ish) slit mesh harness (http://www.cabletiesandmore.com/WrapAroundSleeving.php). Expensive, but I didn't need much.

  • Media owner Ray
  • Date added
The wiring hole was drilled out and the edges sealed off with epoxy.

I wrapped the bundle with some rigid(-ish) slit mesh harness (http://www.cabletiesandmore.com/WrapAroundSleeving.php).

Expensive, but I didn't need much.
