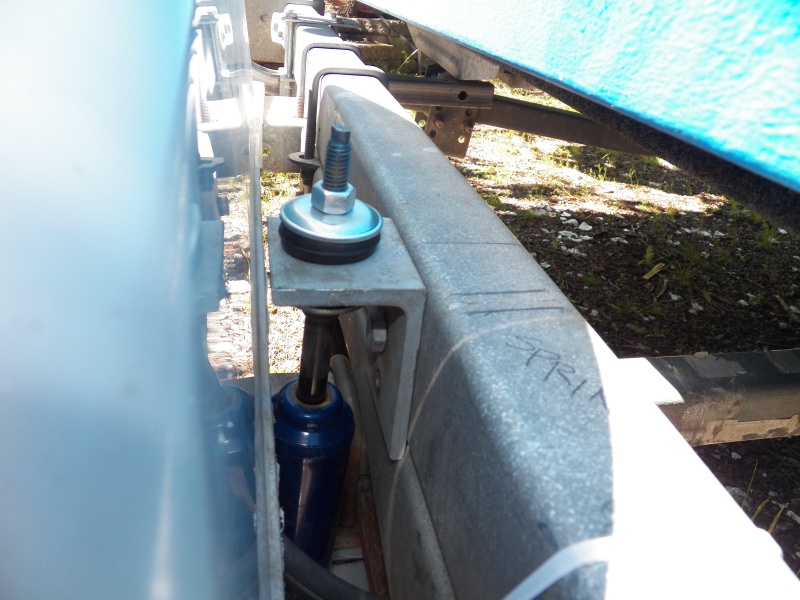

Top mount fabricated from angle iron.
Next
Prev
Here is a close-up of the uneven wear on the 13 inch special "trailer tire" with about 2,500 miles on it. My new all season High Load tires have over 6,000 miles and show no wear.
My "new" 13" tire next to my new 15" tire. The 13" tire has about 2,500 miles on it and the left hand outer tread has worn below the siping (and I just rotated them for that reason). Looking at the top profile, both shoulders are wearing faster than the center despite maximum pressure (50 psi).
Bottom mount fabricated from rectangle tube.
Top mount fabricated from angle iron.
Then I added these. They are little nitrogen gas filled shocks, I think the littlest ones made by Monroe. The stroke is only 4 inches.
I now have more than 2K miles on the trailer, some on steep gravel roads, and I have never felt the trailer push on me when stopping. I can hardly even tell that it's there. Except the bouncing on roads like this.
New disc brake actuator. I had to drill new holes because the tongue was shortened. The wiring is still 4-prong and the reverse lockout solenoid wire has no place to connect until I replace the socket with a 7-pin.
Next
M

Top mount fabricated from angle iron.

Top mount fabricated from angle iron.
Click to expand...
There are no comments to display.

Media information

Category
Trailer modifications
Album
The first thing that I did was remove the old hitch and shorten the tongue. The new disc brake actuator was 6 inches longer than the original hitch and I thought the tongue was already too long.
