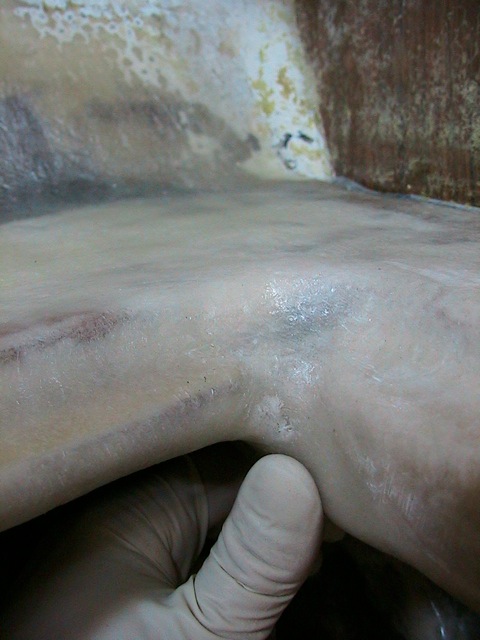

top part starboard side corner by helm
Next
Prev
putty in prep for a nicer final finnish of the glass matt to be added and then gel coated
arrg! she's taking shape now donchano :oP relocated the potty to fit in a 20 gallon concealed water tank in this area - i also think this adds strength to the hull ? the area also turned out to be a highly used spot for a storage container as well, under the new hinged lid =)
much resin was formed by hand to get this smooth final fit
top part starboard side corner by helm
starboard side by the helm - the thick part was just a 2x6 - you can see the glass bead was in the resin in these under-areas to help it all set up better :0|
under!! with this new design also came the possibility to glass it in from the underside as well! this was some very challenging work in tight space :0\ (do not try this at home!) =oP
detail; i used 1 inch ply for a stronger perimeter due to the added stresses that might come from an added hatch... also shows putty where the wood was not fit tight into the new design (cheating!) LOL
Next

top part starboard side corner by helm

  • Media owner
  • Date added
top part starboard side corner by helm
Click to expand...
There are no comments to display.

Media information

Category
v-berth recon (redfox)
Album
tearing out the first plan (additional fuel tank was first here) and going in with a new arrangement of the under-berth area of the Classic :0) ... the water tank and storage plan instead
