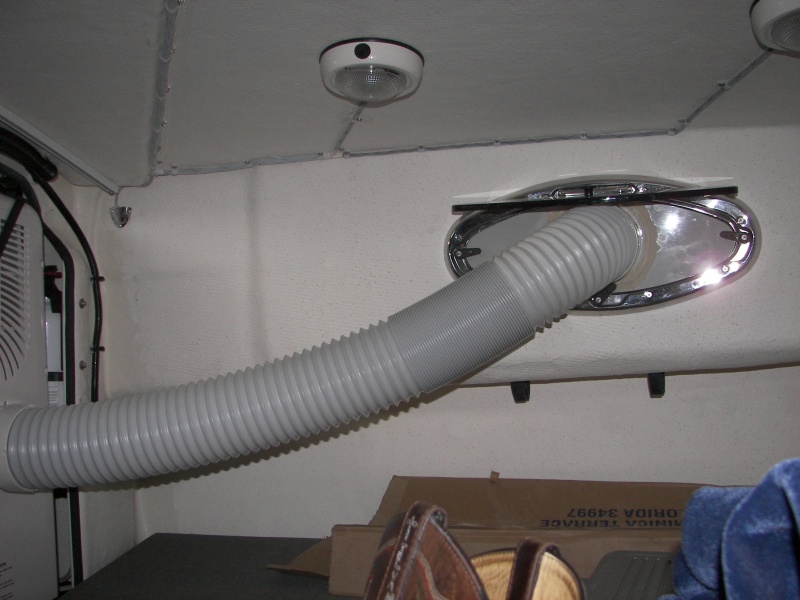

Using screen as template, cut and fit outlet fitting to clip into screen flanges of TomCat windows. 'Had to offset hole upward to leave room for bottom clip. Plastic strips (3) came with A/C.
Next
Prev
Using screen as template, cut and fit outlet fitting to clip into screen flanges of TomCat windows. 'Had to offset hole upward to leave room for bottom clip. Plastic strips (3) came with A/C.

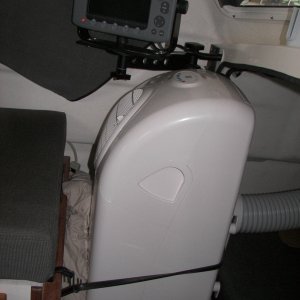

Cushioned with pillow, bungied to seat rail and E-80 bracket. Ground fault interrupter came built-in. 965 Watts,8.5 amps running, 15.3 amps start, delayed rotary compressor.
Final 12k Btu, removable A/C. SPT brand from Pep Boys @$479. 9k Btu was $379. No drain needed. Clears 65 pts. water/day w/o drain line. Air output can be directed straight up.
Air intake is in back of unit, so draws from the forward bunk. Has HEPA filter for cat dander,as well as carbon filter for odors.
Emergency, Jack-Rigged A/C
