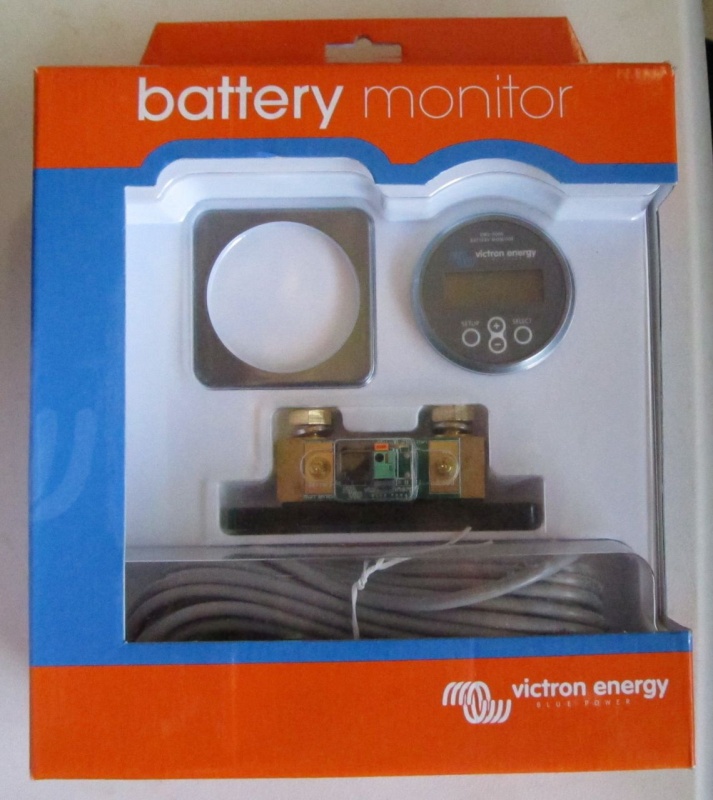

Victron BMV-600S new in box (front)
Next
Prev
My electrical system 8-2014
Victron BMV-600S new in box (back)
Victron BMV-600S new in box (front)
fuse block
This is the gauge part of the Victron BMV-602S battery monitor. It "wires in" with a simple click of a Cat-5 type cable end. I was installing this "on the road," without access to a lot of tools, and there was a left over hole here from where the Wallas control used to be. So I decided to put it here initially and see how I liked it. I just bought a blank outlet cover from a hardware store and cut it to fit the gauge. This allowed me to make the best use of the existing hole. Now that I have used it for awhile, I think I would like to have it at the helm, so I can also easily view it underway, so it's on my to-do list when I next have access to tools/vacuum/etc.
Almost current version of my electrical system in the starboard lazarette (next drawing has corrected slight mistake with the way the start ground wire was drawn). Thanks to AK Angler for the drawing. (I'm leaving all of the iterations in the album since they are referred to in various posts and I don't want to break the links.) Note that the negative buss is not shown because it adds clutter to the drawing.
