Weld Mount footman loop holds tie down strap - see note on previous photo.
Next
Prev
ACR - see note on previous photo.
Positive bus - see note on previous photo.
Negative bus - see note on previous photo.
Weld Mount footman loop holds tie down strap - see note on previous photo.
Looking straight up from below laz shelf at bottom of shelf, this is the bottom of a stainless bracket plus Starboard-pad-you-cannot-see that keeps battery from being able to shift to port. This is on the opposite end to the Starboard cleat in previous photo - see note on previous photo.
Starboard cleat, fasteners tapped into epoxy plugs in cored laz shelf - see note on previous photo.

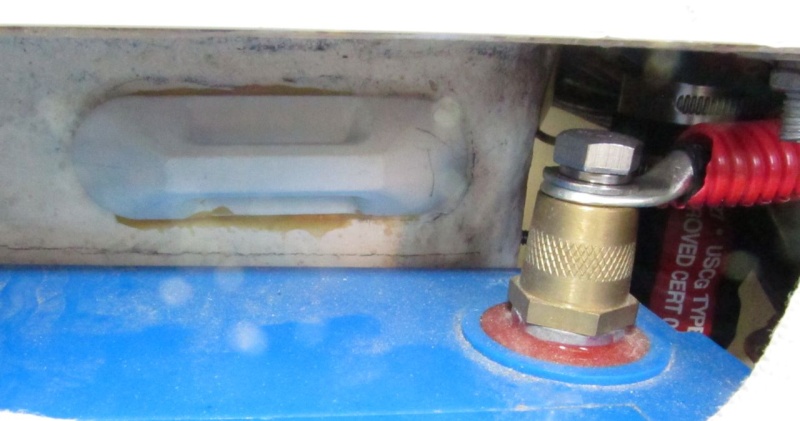

As they say: Pardon the construction mess while we improve the premises! Another C-Brat wanted to see a few detail photos, but I happen to be in the middle of doing some work in this locker, so ties and clamps are off, wires are dangling, and certain improvements have yet to be made. It's not my lazarette's best moment ;) Fiberglass angles work as cleats. Weld Mount footman loops adhered to them hold battery straps. Angles are fastened to laz shelf with machine screws tapped into epoxy plugs in cored shelf.
