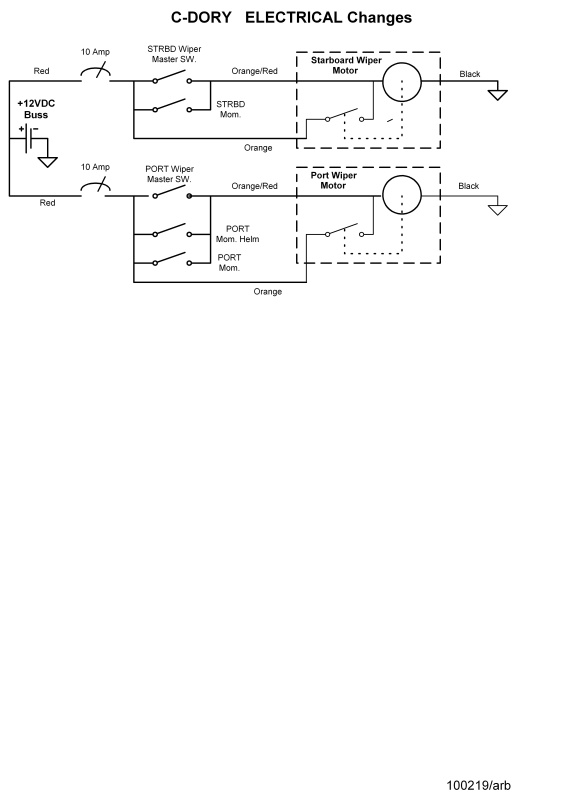

Wiper Motors momentary switch wiring for Port & helm control. An additional single momentary switch has been added for the window washers. It is fused and operated separately for manual use. The wiring diagram will be added later.
Prev
WIPER MANUAL 02
WIPER MANUAL 01
AFI Washer Kit. The tubing, mounting clips and spray nozzles are for the 'single' Deluxe Style Wiper Arms. A single independent push button switch is used for both wiper arms. The Pantographic arms have the spray nozzles built into the arm, as shown in the earlier pixs. I saved the older single arms and used the water tank, etc.,with the replacement pantographic arms.
Wiper Motors momentary switch wiring for Port & helm control. An additional single momentary switch has been added for the window washers. It is fused and operated separately for manual use. The wiring diagram will be added later.
