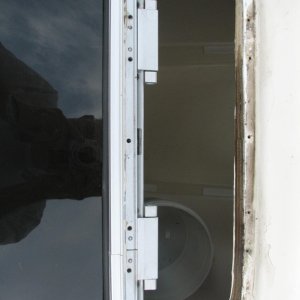

Note the dirt on the foreward lip, and no bedding on the frame.

Note the dirt on the foreward lip, and no bedding on the frame.

  • Media owner thataway
  • Date added May 30, 2007
  • Reaction score 0
  • Comments 0

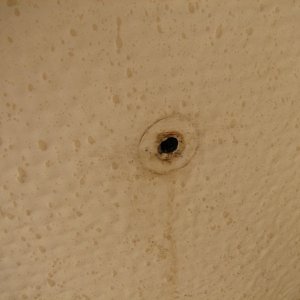

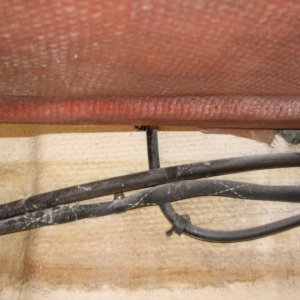

Hole, filled with clear epoxy, where 2\" #12 screw went into either core or support for foreward deck--was damp, dryed, epoxied and screw reset with sealant. The joint between the cockpit floor and aft bulkhead is now sealed to prevent any further water intrusion.

Hole, filled with clear epoxy, where 2\" #12 screw went into either core or support for foreward deck--was damp, dryed, epoxied and screw reset with sealant. The joint between the cockpit floor and aft bulkhead is now sealed to prevent any further water intrusion.

  • Media owner thataway
  • Date added May 25, 2007
  • Reaction score 0
  • Comments 0
Screw holes in boat hull core filled with epoxy, after being undercut, then fillet to Decaboard, with sanding boat bottom and then laminating biaxial between decaboard and the boat bottom--no more screws into the core.

Screw holes in boat hull core filled with epoxy, after being undercut, then fillet to Decaboard, with sanding boat bottom and then laminating biaxial between decaboard and the boat bottom--no more screws into the core.

  • Media owner thataway
  • Date added May 25, 2007
  • Reaction score 0
  • Comments 0

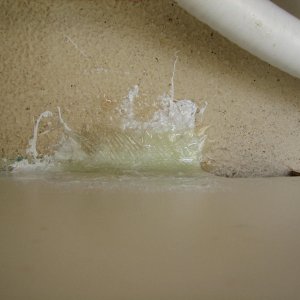

Screw (rusted, with damp core) and bracket removed, damp core removed and dryed, filled with epoxy and fillet, then glass to bond floor to step face, eliminating any screws into the core

Screw (rusted, with damp core) and bracket removed, damp core removed and dryed, filled with epoxy and fillet, then glass to bond floor to step face, eliminating any screws into the core

  • Media owner thataway
  • Date added May 25, 2007
  • Reaction score 0
  • Comments 0

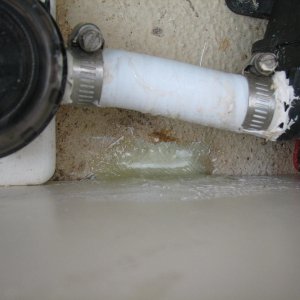

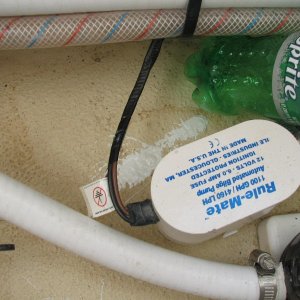

Screw holes for bilge pump in cabin step sump, ground out and filled with epoxy, so no screws into core

Screw holes for bilge pump in cabin step sump, ground out and filled with epoxy, so no screws into core

  • Media owner thataway
  • Date added May 25, 2007
  • Reaction score 0
  • Comments 0

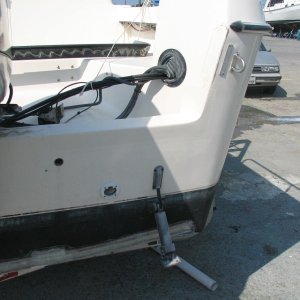

Transom, just before compounding at transom corner and final epoxy coat on bottom of transom, where Transducer starboard block will be screwed into solid glass

Transom, just before compounding at transom corner and final epoxy coat on bottom of transom, where Transducer starboard block will be screwed into solid glass

  • Media owner thataway
  • Date added May 25, 2007
  • Reaction score 0
  • Comments 0

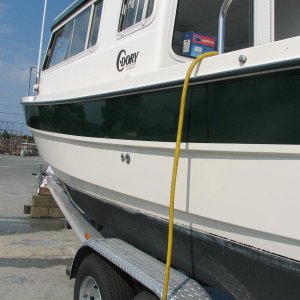

Port side aft after buff and wax

Port side aft after buff and wax

  • Media owner thataway
  • Date added May 25, 2007
  • Reaction score 0
  • Comments 0

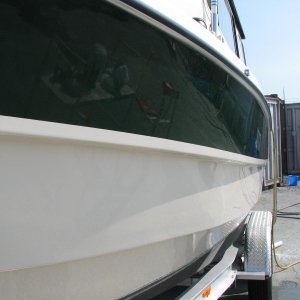

Port side foreward after buff and wax

Port side foreward after buff and wax

  • Media owner thataway
  • Date added May 25, 2007
  • Reaction score 0
  • Comments 0

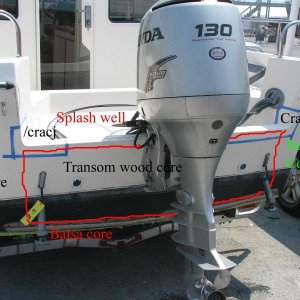

Transom, with wood core deliniated where the fiberglass bulges, between the bottom of the boat and under the deck

Transom, with wood core deliniated where the fiberglass bulges, between the bottom of the boat and under the deck

  • Media owner thataway
  • Date added May 24, 2007
  • Reaction score 0
  • Comments 0

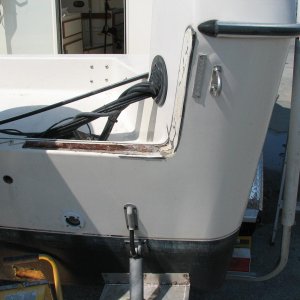

Photo outlining the part of the transom backed with wood. Cracks in to the splash well area from the top of the transom. Areas or repair deliniated in masking tape.

Photo outlining the part of the transom backed with wood. Cracks in to the splash well area from the top of the transom. Areas or repair deliniated in masking tape.

  • Media owner thataway
  • Date added May 24, 2007
  • Reaction score 0
  • Comments 0

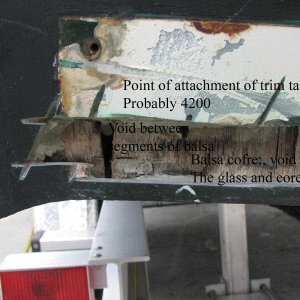

annotated void in the core at the transom. This core in the bottom of the boat should be separated from the transom core by at least a layer of glass and should extend to the extreme end of the boat, so there is no voids, where water can trap. The solution is to fill this gap with solid glass.

annotated void in the core at the transom. This core in the bottom of the boat should be separated from the transom core by at least a layer of glass and should extend to the extreme end of the boat, so there is no voids, where water can trap. The solution is to fill this gap with solid glass.

  • Media owner thataway
  • Date added May 24, 2007
  • Reaction score 0
  • Comments 0

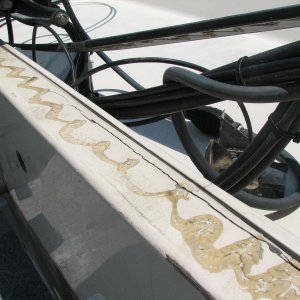

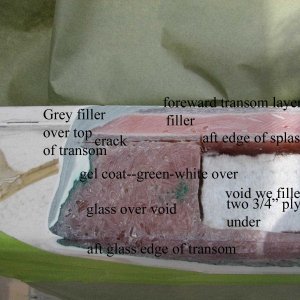

annotatred photo of transom. Note the layers of gel coat, both green and white which were under the filler. The filler is the only item which crosses the entire transom, no glass in this layer, so it is susceptable to cracks.

annotatred photo of transom. Note the layers of gel coat, both green and white which were under the filler. The filler is the only item which crosses the entire transom, no glass in this layer, so it is susceptable to cracks.

  • Media owner thataway
  • Date added May 24, 2007
  • Reaction score 0
  • Comments 0

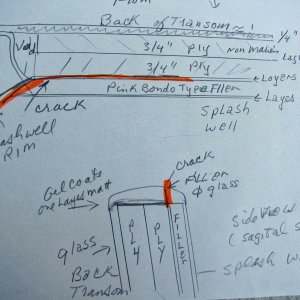

sketch of transom

sketch of transom

  • Media owner thataway
  • Date added May 24, 2007
  • Reaction score 0
  • Comments 0

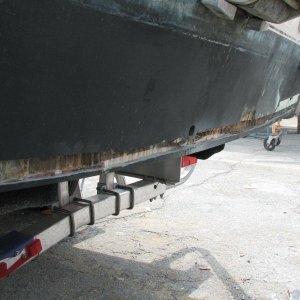

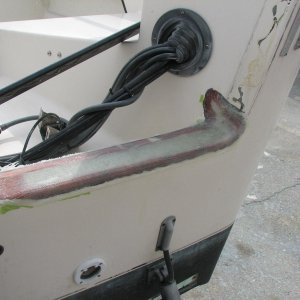

cut along the entire bottom of transom to expose the balsa core and dry it before filling this void with glass and relaminating the transom

cut along the entire bottom of transom to expose the balsa core and dry it before filling this void with glass and relaminating the transom

  • Media owner thataway
  • Date added May 23, 2007
  • Reaction score 0
  • Comments 0

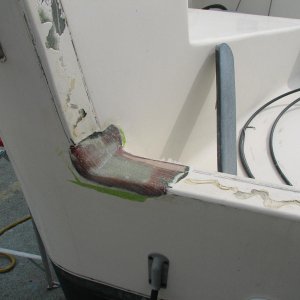

Glass patch on port side of transom

Glass patch on port side of transom

  • Media owner thataway
  • Date added May 23, 2007
  • Reaction score 0
  • Comments 0
Glass across stb side of transom

Glass across stb side of transom

  • Media owner thataway
  • Date added May 23, 2007
  • Reaction score 0
  • Comments 0

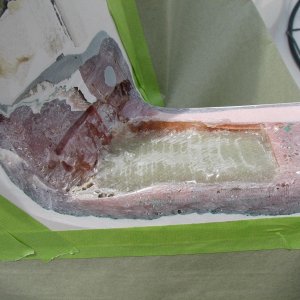

The port side of the transom. We are filling this with glass. The construction is the same all along the transom.

The port side of the transom. We are filling this with glass. The construction is the same all along the transom.

  • Media owner thataway
  • Date added May 22, 2007
  • Reaction score 0
  • Comments 0

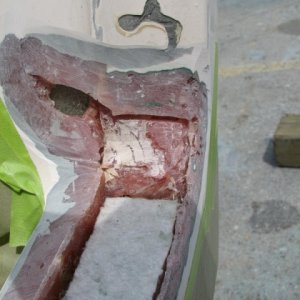

To the right of the previous photo. We have put a piece of roving on the back side of the hole, to re-inforce the transom and splash pan.

To the right of the previous photo. We have put a piece of roving on the back side of the hole, to re-inforce the transom and splash pan.

  • Media owner thataway
  • Date added May 22, 2007
  • Reaction score 0
  • Comments 0
Crack on stb side looking toward the motor

Crack on stb side looking toward the motor

  • Media owner thataway
  • Date added May 21, 2007
  • Reaction score 0
  • Comments 0
entire starboard transom

entire starboard transom

  • Media owner thataway
  • Date added May 21, 2007
  • Reaction score 0
  • Comments 0

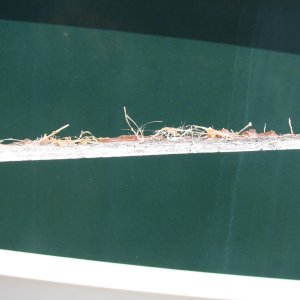

Glass which was cut out over the top of the void over the wood core of the transom

Glass which was cut out over the top of the void over the wood core of the transom

  • Media owner thataway
  • Date added May 21, 2007
  • Reaction score 0
  • Comments 0

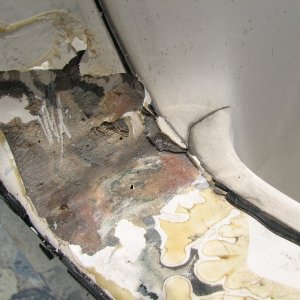

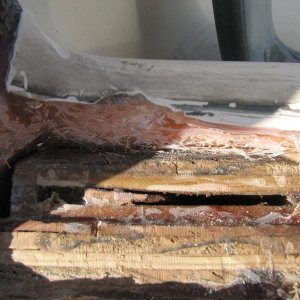

Final prep shows void in non marine plywood. The top layer of glass was only about 1/8 to 3/16 " thick. No rot or moisture in the core--but note that the wood in the transom ends before the top of the transom, and at the left side of the photo, instead of being carried all of the way to the side of the transom. In other words the poorly laminated spash well molding is taking a lot of the load of the engine thrust, instead of the sides of the hull.

Final prep shows void in non marine plywood. The top layer of glass was only about 1/8 to 3/16 " thick. No rot or moisture in the core--but note that the wood in the transom ends before the top of the transom, and at the left side of the photo, instead of being carried all of the way to the side of the transom. In other words the poorly laminated spash well molding is taking a lot of the load of the engine thrust, instead of the sides of the hull.

  • Media owner thataway
  • Date added May 21, 2007
  • Reaction score 0
  • Comments 0
Further opening on the port side, grinding out the crack, reveals only resin, no glass or laminate.

Further opening on the port side, grinding out the crack, reveals only resin, no glass or laminate.

  • Media owner thataway
  • Date added May 21, 2007
  • Reaction score 0
  • Comments 0

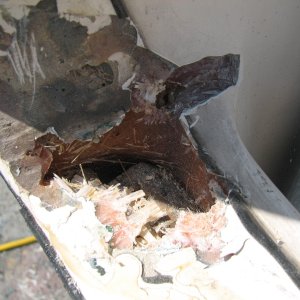

Port side initial cuts, note very thin layer of glass, a screw driver tapping on it broke it out. Note the crack going into the spash well and into the glass on top; compare with next photo

Port side initial cuts, note very thin layer of glass, a screw driver tapping on it broke it out. Note the crack going into the spash well and into the glass on top; compare with next photo

  • Media owner thataway
  • Date added May 21, 2007
  • Reaction score 0
  • Comments 0
